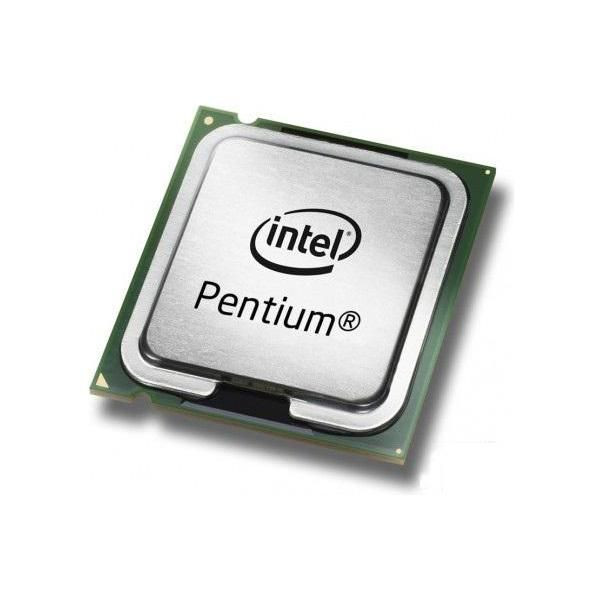

Acer KC.21201.DEG CPU.DUO.G2120.3.1G.3M.1333 KC.21201.DEG

- Dual Core
- Enhanced Halt State (C1E)
- Enhanced Intel Speedstep Technology
- Execute Disable Bit
- Intel EM64T
- Intel Thermal Monitor

Intel's newest addition to the Intel® Pentium® processor family with dual-core processor technology that delivers great desktop and mobile performance, low power enhancements, and multitasking for everyday computing.

Intel 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software. Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.

Enhanced Intel SpeedStep Technology is an advanced means of enabling very high performance while also meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep Technology switches both voltage and frequency in tandem between high and low levels in response to processor load.

Execute Disable Bit is a hardware-based security feature that can reduce exposure to viruses and malicious-code attacks and prevent harmful software from executing and propagating on the server or network. Help protect your customers' business assets and reduce the need for costly virus-related repairs by building systems with built-in Intel Execute Disable Bit.

Features



CPU configuration (max)



1


Embedded options available



Yes


Execute Disable Bit



Yes


Graphics & IMC lithography



22 nm


Idle States



Yes


Market segment



Desktop


PCI Express configurations



1x16, 2x8, 1x8+2x4


PCI Express slots version



2.0


Supported instruction sets



SSE4.1, SSE4.2


Thermal Monitoring Technologies



Yes


Thermal solution specification



PCG 2011C


Graphics



Number of displays supported (on-board graphics)



3


On-board graphics card



Yes


On-board graphics card base frequency



650 MHz


On-board graphics card dynamic frequency (max)



1050 MHz


Memory



ECC



Yes


Maximum internal memory supported by processor



32 GB


Memory channels



Dual-channel


Memory clock speeds supported by processor



1333, 1600


Memory types supported by processor



DDR3-SDRAM


Other features



Intel® Virtualization Technology (Intel® VT)



VT-x


Package dimensions



Gross Weight (Package, kg)



0.05 kg


Power



Thermal Design Power (TDP)



55 Watt


Processor



Box



No


Bus type



DMI


Compatible chipsets



Intel® B75 Express, Intel® H61 Express, Intel® H77 Express, Intel Q75 Express, Intel® Q77 Express, Intel® Z75 Express, Intel® Z77 Express


Component for



PC


L3 cache speed



3.1 GHz


Memory bandwidth supported by processor (max)



25.6 GB/s


Processor base frequency



3.1 GHz


Processor cache



3 MB


Processor cache type



L3


Processor code



SR0UF


Processor cores



2


Processor family



Intel Pentium G


Processor frequency



3.1 GHz


Processor lithography



22 nm


Processor model



G2120


Processor operating modes



64-bit


Processor socket



LGA 1155 (Socket H2)


Processor threads



2


Stepping



P0


System bus rate



5 GT/s


Thermal Design Power (TDP)



55 Watt


Processor special features



Conflict-Free processor



Yes


Enhanced Intel SpeedStep Technology



Yes


Intel Virtualization Technology (VT-x)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Intel® Smart Cache



Yes


Product dimensions



Net Weight (Product, kg)



0.04 kg


Vendor information



Brand Name


Acer


Warranty



3 Month(s)


Weight & dimensions



Processor package size



3.75 cm
