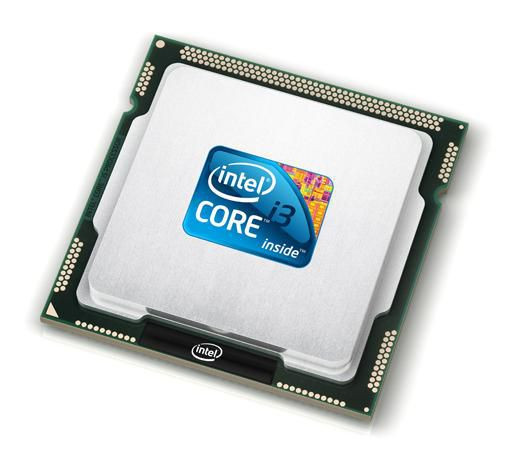

Acer KC.32401.CI3 CPU.I3-3240.IVY.BRIDGE.55W KC.32401.CI3

Instruction Set
An instruction set refers to the basic set of commands and instructions that a microprocessor understands and can carry out. The value shown represents which Intel�s instruction set this processor is compatible with.

Instruction Set Extensions
Instruction Set Extensions are additional instructions which can increase performance when the same operations are performed on multiple data objects. These can include SSE (Streaming SIMD Extensions) and AVX (Advanced Vector Extensions).

Processor Base Frequency
Processor Base Frequency describes the rate at which the processor's transistors open and close. The processor base frequency is the operating point where TDP is defined. Frequency is measured in gigahertz (GHz), or billion cycles per second.

TDP
Thermal Design Power (TDP) represents the average power, in watts, the processor dissipates when operating at Base Frequency with all cores active under an Intel-defined, high-complexity workload. Refer to Datasheet for thermal solution requirements.

Features



CPU configuration (max)



1


Execute Disable Bit



Yes


Graphics & IMC lithography



22 nm


Idle States



Yes


Market segment



Desktop


PCI Express configurations



1x16, 2x8, 1x8+2x4


PCI Express slots version



2.0


Supported instruction sets



AVX, SSE4.1, SSE4.2


Thermal Monitoring Technologies



Yes


Thermal solution specification



PCG 2011C


Graphics



Number of displays supported (on-board graphics)



3


On-board graphics card



Yes


On-board graphics card base frequency



650 MHz


On-board graphics card dynamic frequency (max)



1050 MHz


On-board graphics card model



Intel� HD Graphics 2500


Memory



ECC



Yes


Maximum internal memory supported by processor



32 GB


Memory channels



Dual-channel


Memory clock speeds supported by processor



1333, 1600


Memory types supported by processor



DDR3-SDRAM


Operational conditions



Tcase



65.3 �C


Other features



Intel� Virtualization Technology (Intel� VT)



VT-x


Package dimensions



Gross Weight (Package, kg)



0.05 kg


Power



Thermal Design Power (TDP)



55 Watt


Processor



Box



No


Bus type



DMI


Compatible chipsets



Intel� B75 Express, Intel� H61 Express, Intel� H77 Express, Intel Q75 Express, Intel� Q77 Express, Intel� Z75 Express, Intel� Z77 Express


Component for



PC


L3 cache speed



3.4 GHz


Memory bandwidth supported by processor (max)



25.6 GB/s


Processor base frequency



3.4 GHz


Processor cache



3 MB


Processor cache type



L3


Processor code



SR0RH


Processor cores



2


Processor family



Intel� Core� i3


Processor frequency



3.4 GHz


Processor generation



3rd gen Intel� Core� i3


Processor lithography



22 nm


Processor model



i3-3240


Processor operating modes



64-bit


Processor socket



LGA 1155 (Socket H2)


Processor threads



4


Stepping



L1


System bus rate



5 GT/s


Thermal Design Power (TDP)



55 Watt


Processor special features



Conflict-Free processor



Yes


Enhanced Intel SpeedStep Technology



Yes


Intel FDI Technology



Yes


Intel Virtualization Technology (VT-x)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Intel� Anti-Theft Technology (Intel� AT)



Yes


Intel� Clear Video HD Technology (Intel� CVT HD)



Yes


Intel� Hyper Threading Technology (Intel� HT Technology)



Yes


Intel� Identity Protection Technology (Intel� IPT)



Yes


Intel� Insider�



Yes


Intel� InTru� 3D Technology



Yes


Intel� My WiFi Technology (Intel� MWT)



Yes


Intel� Quick Sync Video Technology



Yes


Intel� Smart Cache



Yes


Intel� Wireless Display (Intel� WiDi)



Yes


Product dimensions



Net Weight (Product, kg)



0.04 kg


Vendor information



Brand Name


Acer


Warranty



3 Month(s)


Weight & dimensions



Processor package size



3.75 cm
