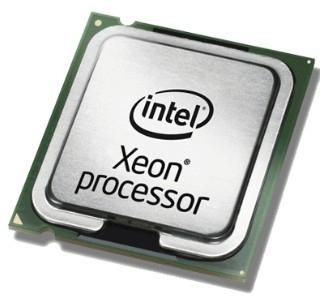

Acer KC.33301.RUP CPU.XEON.X3330.2.66G/6M/1333 KC.33301.RUP

The Intel Xeon processor 3300 sequence-based platforms unleash the computing power of Intel Xeon processors. The new 45 nm Quad and Dual-Core processors feature enhanced Intel Core microarchitecture that provides your business with exceptional performance and power efficiency at a very affordable cost.

These servers are ideal for small business owners looking for ways to grow business, manage operation more effectively and efficiently, and protect and secure one of their most important assets - information.

Intel Virtualization Technology (VT-x) allows one hardware platform to function as multiple �virtual� platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Intel 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software. Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.

Enhanced Intel SpeedStep Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.

Intel VT-x with Extended Page Tables (EPT), also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Extended Page Tables in Intel Virtualization Technology platforms reduces the memory and power overhead costs and increases battery life through hardware optimization of page table management.

Features



Execute Disable Bit



Yes


Graphics & IMC lithography



45 nm


Idle States



Yes


Market segment



Server


Number of Processing Die Transistors



456 M


Processing Die size



164 mm�


Thermal Monitoring Technologies



Yes


Operational conditions



Tcase



71.4 �C


Other features



Intel� Virtualization Technology (Intel� VT)



VT-x


Package dimensions



Gross Weight (Package, kg)



0.5 kg


Power



Thermal Design Power (TDP)



95 Watt


VID Voltage Range



0.8500 - 1.3625 V


Processor



Box



No


Compatible chipsets



Intel� 3200, Intel� 3210


Component for



Server/workstation


L2 cache speed



2.66 GHz


Processor base frequency



2.66 GHz


Processor cache



6 MB


Processor cache type



L2


Processor code



SLB6C


Processor cores



4


Processor family



Intel� Xeon� 3000 Sequence


Processor frequency



2.66 GHz


Processor front side bus



1333 MHz


Processor lithography



45 nm


Processor model



X3330


Processor operating modes



64-bit


Processor socket



LGA 775 (Socket T)


Stepping



R0


Thermal Design Power (TDP)



95 Watt


VID Voltage Range



0.8500 - 1.3625 V


Processor special features



Enhanced Intel SpeedStep Technology



Yes


Intel Virtualization Technology (VT-x)



Yes


Product dimensions



Net Weight (Product, kg)



0.4 kg


Vendor information



Brand Name


Acer


Warranty



3 Month(s)


Weight & dimensions



Processor package size



3.75 cm
