Acer

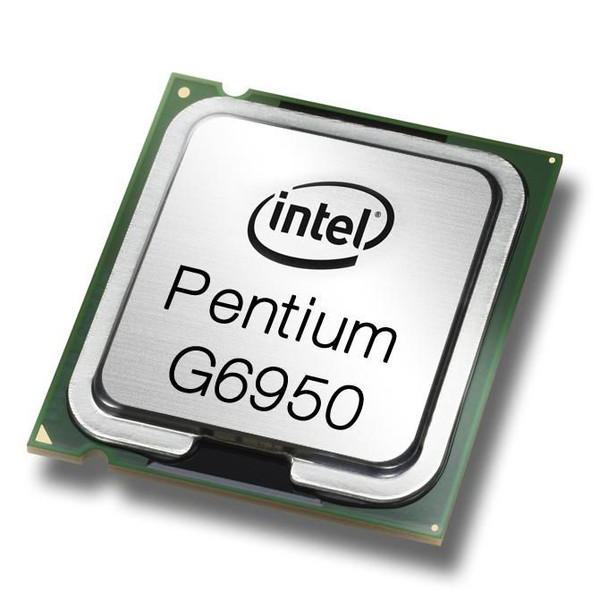

Acer KC.69501.DEK CPU.P-DUO.G6950.2.8G/3M/1066.K KC.69501.DEK
- UPC:
- 0000000000000
- MPN:
- KC.69501.DEK
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
The Intel Pentium processor with Intel dual-core technology delivers great desktop performance, low power enhancements, and multitasking for everyday computing.
Intel dual-core processing
Runs two independent processor cores in one physical package at the same frequency. Features up to 2 MB of shared L2 cache and 800 MHz Front Side Bus.
Intel Wide Dynamic Execution
Enables delivery of more instructions per clock cycle to improve execution time and energy efficiency.
Intel Smart Memory Access
Improves system performance by optimizing the use of the available data bandwidth.
Intel Advanced Smart Cache
The shared L2 cache is dynamically allocated to each processor core based on workload. This increases the probability that each core can access data from fast L2 cache, significantly reducing latency to frequently used data and improving performance.
Intel Advanced Digital Media Boost
Accelerates a broad range of multimedia, encryption, scientific and financial applications by significantly improving performance when executing Intel� Streaming SIMD Extension (SSE/SSE2/SSE3) instructions.
Intel 64 architecture
An enhancement to Intel�s 32-bit architecture to enable the processor to access larger amounts of memory.
Execute Disable Bit
Provides enhanced virus protection when deployed with a supported operating system.
Intel designed thermal solution for boxed processors
Intel boxed processors ship with a thermal solution specifically for this processor designed for maximum thermal and acoustic performance.
Features
CPU configuration (max)
1
Embedded options available
Yes
Execute Disable Bit
Yes
Graphics & IMC Die Size
114 mm�
Graphics & IMC lithography
45 nm
Idle States
Yes
Market segment
Desktop
Maximum number of PCI Express lanes
16
Number of Graphics & IMC Die Transistors
177 M
Number of Processing Die Transistors
382 M
PCI Express configurations
1x16, 2x8
PCI Express slots version
2.0
Processing Die size
81 mm�
Graphics
Number of displays supported (on-board graphics)
2
On-board graphics card
Yes
On-board graphics card base frequency
553 MHz
Memory
Maximum internal memory supported by processor
16 GB
Memory channels
Dual-channel
Memory clock speeds supported by processor
1066
Memory types supported by processor
DDR3-SDRAM
Operational conditions
Tcase
72.6 �C
Other features
Intel� Virtualization Technology (Intel� VT)
VT-x
Power
Thermal Design Power (TDP)
73 Watt
VID Voltage Range
0.6500 - 1.4000 V
Processor
Box
No
Bus type
DMI
Compatible chipsets
Intel� 3450, Intel� H55 Express, Intel� H57 Express, Intel� P55 Express, Intel� Q57 Express
Component for
PC
L3 cache speed
2.8 GHz
Memory bandwidth supported by processor (max)
17 GB/s
Processor base frequency
2.8 GHz
Processor cache
3 MB
Processor cache type
L3
Processor cores
2
Processor family
Intel Pentium G
Processor frequency
2.8 GHz
Processor lithography
32 nm
Processor model
G6950
Processor operating modes
64-bit
Processor socket
LGA 1156 (Socket H)
Processor threads
2
System bus rate
2.5 GT/s
Thermal Design Power (TDP)
73 Watt
VID Voltage Range
0.6500 - 1.4000 V
Processor special features
Enhanced Intel SpeedStep Technology
Yes
Intel FDI Technology
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel� Smart Cache
Yes
Vendor information
Brand Name
Acer
Warranty
3 Month(s)
Weight & dimensions
Processor package size
3.75 cm
