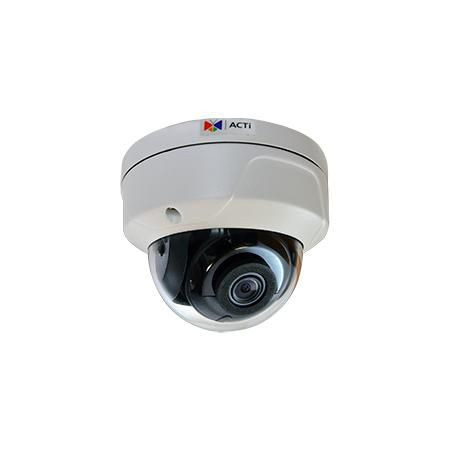

ACTi A74 6MP Outdoor Dome with D/N. A74

Audio



Audio system



2-way


Voice codecs



G.711


Camera



Adjustment shutter speed



Auto


Angle of rotation



355 �


Camera pan control



Yes


Camera shutter speed



1/30-1/64000 Second


Camera shutter type



Electronic


Camera tilt control



Yes


Lens viewing angle, horizontal



97 �


Lens viewing angle, vertical



63 �


Pan range



0 - 355 �


Tilt angle range



0 - 75 �


Viewing angle, horizontal



97 �


Viewing angle, vertical



63 �


Design



Form factor



Dome


Housing material



Metal


IK code



IK10


International Protection (IP) code



IP66, IP68, IP69K


Mounting type



Ceiling/wall


Product colour



White


Protection features



Vandal proof


Weatherproof



Yes


Image sensor



Number of sensors



1


Optical sensor size



1/2.7 "


Progressive scan



Yes


Sensor type



CMOS


Lens system



Fixed focal length



2.8 mm


Fixed focus



Yes


Maximum aperture number



2


Number of lenses



1


Management features



Firmware upgradeable



Yes


Web-based management



Yes


Network



Bluetooth



No


Ethernet interface type



Fast Ethernet


Ethernet LAN



Yes


Networking standards



IEEE 802.1x, IEEE 802.3af


Quality of Service (QoS) support



Yes


Supported network protocols



IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X


Wi-Fi



No


Night vision



Infra-red wavelength



850 nm


LED type



IR


Night vision



Yes


Night vision distance



65 m


Number of illumination LEDs



3


Package dimensions



Gross Weight (Package, kg)



1 kg


Packaging content



Number of cameras



1


Performance



Certification



CE B, FCC B, BIS


Connectivity technology



Wired


Day/night mode



Yes


Placement supported



Outdoor


Type



IP security camera


Wide Dynamic Range (WDR)



Yes


Ports & interfaces



Ethernet LAN (RJ-45) ports



1


Power



DC output voltage



12


Power consumption (max)



7.5 Watt


Power consumption (Power over Ethernet (PoE))



9 Watt


Power source type



DC, PoE


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Height



8.24 cm


Security



HTTPS encryption



Yes


IP address filtering



Yes


Password protection



Yes


Video motion detection



Yes


Storage



Built-in HDD



No


Card reader integrated



Yes


Compatible memory cards



MicroSD (TransFlash), MicroSDHC, MicroSDXC


Maximum memory card size



128 GB


Vendor information



Brand Name


ACTi


Warranty



3 Year(s)


Video



Back Light Compensation (BLC)



Yes


Bit rate



128Kbps - 12Mbps


Bit rate control



Constant Bit Rate (CBR)/Variable Bit Rate (VBR)


Flip & mirror



Yes


Gain control type



Auto


Image quality adjustment



Brightness, Contrast, Sharpness


Maximum resolution



3072 x 2048 Pixels


Noise reduction



Yes


Noise reduction technology



3D noise reduction


Privacy masking



Yes


Supported graphics resolutions



640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2560 x 1440, 2592 x 1944, 2688 x 1520, 3072 x 2048


Total megapixels



6 MP


Video compression formats



H.264, H.265, M-JPEG


Video streaming



Yes


Weight & dimensions



Diameter



11.1 cm
