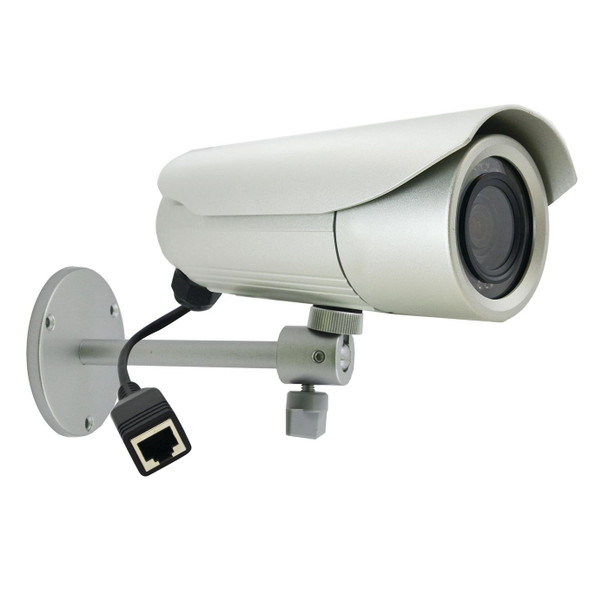

ACTi E41 E41 1M Bullet Adaptive IR WDR E41

Camera



Adjustment shutter speed



Auto/Manual


Auto flip



Yes


Camera shutter speed



1/5 - 1/10000 Second


Lens viewing angle, horizontal



69.8 �


Minimum illumination



0.1 lx


Viewing angle, horizontal



69.8 �


White balance



Auto, Manual


Design



Form factor



Bullet


Housing material



Metal


IK code



IK10


International Protection (IP) code



IP68


Mounting type



Ceiling/Wall/Pole


Product colour



White


Weatherproof



Yes


Image sensor



Effective sensor resolution



700 Pixels


Number of effective pixels (H x V)



1280 x 800 Pixels


Number of sensors



1


Optical sensor size



1/4 "


Progressive scan



Yes


Sensor type



CMOS


Lens system



Focal length range



3.3 - 12 mm


Focus



Manual


Maximum aperture number



1.6


Number of lenses



1


Management features



Firmware upgradeable



Yes


Web-based management



Yes


Network



Bluetooth



No


Cabling technology



10/100Base-T(X)


E-mail



Yes


Ethernet interface type



Fast Ethernet


Ethernet LAN



Yes


Networking standards



IEEE 802.1x


Streaming method



Multicast


Supported network protocols



TCP, UDP, HTTP, HTTPs, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour


Wi-Fi



No


Night vision



Infra-red wavelength



850 nm


LED type



IR


Night vision



Yes


Night vision distance



30 m


Number of illumination LEDs



15


Operational conditions



Operating relative humidity (H-H)



10 - 85 %


Operating temperature (T-T)



-40 - 50 �C


Package dimensions



Depth (package,cm)



10 cm


Gross Weight (Package, kg)



1.5 kg


Height (package,cm)



28.5 cm


Width (package,cm)



20.2 cm


Packaging content



Number of cameras



1


Performance



Certification



CE, FCC,


Connectivity technology



Wired


Day/night mode



Yes


Infrared (IR) cut-off filter



Yes


People counting function



Yes


Placement supported



Outdoor


Plug and Play



Yes


Type



IP security camera


Wide Dynamic Range (WDR)



Yes


Ports & interfaces



Ethernet LAN (RJ-45) ports



1


Power



Power consumption (Power over Ethernet (PoE))



3.74 Watt


Power source type



PoE


Product dimensions



Net Weight (Product, kg)



0.64 kg


Security



Alert notification type



E-mail


Anti-flicker



Yes


Digital watermark



Yes


Heartbeat



Yes


HTTPS encryption



Yes


IP address filtering



Yes


Mirror



Yes


Password protection



Yes


Password protection type



User


Privacy protection



Yes


Video motion detection



Yes


Storage



Built-in HDD



No


Vendor information



Brand Name


ACTi


Warranty



3 Year(s)


Video



3D NR (Noise Reduction)



Yes


Automatic gain control



Yes


Bit rate



28 Kbps - 6 Mbps


Digital Wide Dynamic Range (DWDR)



Yes


Flip & mirror



Yes


Frame rate



30 fps


Gain control type



Auto


Image quality adjustment



Brightness, Contrast, Sharpness


Maximum resolution



1280 x 720 Pixels


Noise reduction



Yes


Noise reduction technology



Ultra 3D noise reduction


Portrait mode



Yes


Privacy masking



Yes


Supported graphics resolutions



320 x 240, 640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 720 (HD 720)


Text caption overlay



Yes


Time stamp overlay



Yes


Total megapixels



1 MP


Video compression formats



H.264, M-JPEG


Video streaming



Yes


Weight & dimensions



Diameter



7.7 cm


Length



21.3 cm
