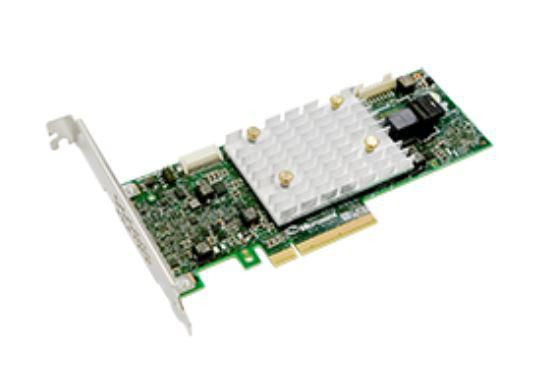

Adaptec 2304400-R Smartraid 3101E-4I Interface 2304400-R

Entry-level Adaptec SmartRAID 3100E RAID adapters are cost-effective hardware RAID solutions. They have been added to our trusted Smart Storage platform to support deployments that use fewer drives and can benefit from caching capabilities but do not need the full cache backup or advanced RAID levels of our full-featured RAID adapters.

Design



Certification



CE, FCC, UL, C-tick, VCCI, KCC, CNS


Hot-Plug support



Yes


Internal



Yes


Mean time between failures (MTBF)



1370000 Hour


Features



Data transfer rate (max)



12 Gbit/s


Native Command Queuing (NCQ)



Yes


RAID levels



0, 1, 1 ADM, 10 ADM, 10


S.M.A.R.T. support



Yes


Logistics data



Harmonized System (HS) code



84733020


Operational conditions



Operating temperature (T-T)



0 - 55 °C


Package dimensions



Gross Weight (Package, kg)



0.46 kg


Packaging data



Quantity



1


Ports & interfaces



Expansion card form factor



Low-profile


Expansion card standard



PCIe 3.0


Host interface



PCIe


Internal mini-SAS HD ports



1


Internal SATA ports quantity



4


Output interface



SAS, SATA


Product dimensions



Net Weight (Product, kg)



0.35 kg


Product Height



6.4 cm


Product Width



16.7 cm


System requirements



Linux operating systems supported



Yes


Windows operating systems supported



Y, Yes


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Adaptec


Warranty



1 Year(s)
