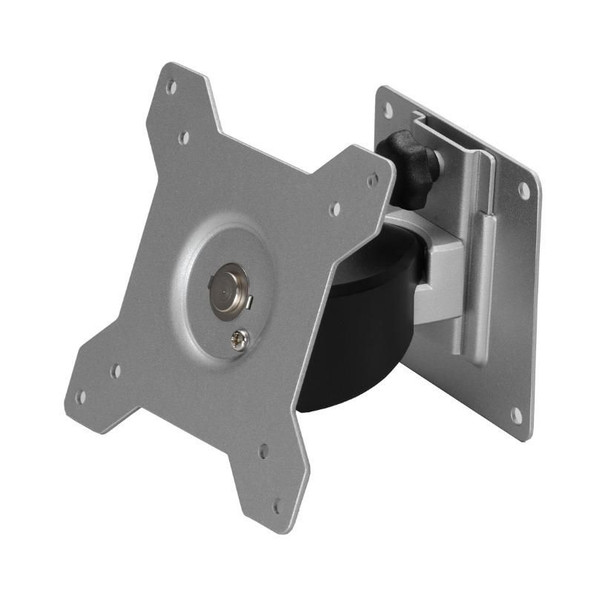

Advantech ARES-12240-AR01100 Wall Mount.support ARES-12240-AR01100

ARES-12240 is a tiltable and swivelable wall mount with 75x75 mm/ 100x100 mm VESA standard holes. It supports a weight of 2~10kg and screens up to 32".

Design



Housing material



Aluminium, Plastic, Steel


Product colour



Silver


Ergonomics



Pivot angle



0 - 360 °


Swivel angle range



-20 - 20 °


Swivelling



Yes


Tilt adjustment



Yes


Tilt angle range



-20 - 20 °


Mounting



Distance to the wall (min)



9.07 cm


Maximum screen size



32 "


Maximum VESA mount



100 x 100 mm


Maximum weight capacity



10 kg


Minimum screen size



15 "


Minimum VESA mount



75 x 75 mm


Mounting



Screws


Mounting type



Wall


Number of displays supported



1


Panel mounting interface



75 x 75, 100 x 100


Suitable for TV



Yes


Other features



Screw type



M4


Package dimensions



Gross Weight (Package, kg)



0.76 kg


Product dimensions



Net Weight (Product, kg)



0.55 kg


Product Depth



9.7 cm


Product Height



11.5 cm


Product Width



11.5 cm


Vendor information



Brand Name


Advantech


Warranty



2 Year(s)
