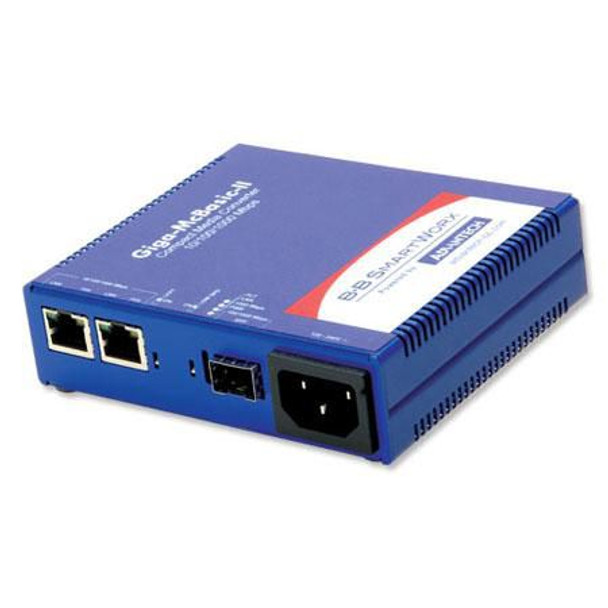

Advantech IMC-470-SFP Standalone Media IMC-470-SFP
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- IMC-470-SFP
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Introduction
The IMC-450 and 470 series are standalone media converters with an optional internal power security device that makes the connection between copper and fiber cables. They can
be installed anywhere a network connection is required. In addition, these media converters feature automatic link restoration. They increase the scalability of a network by providing
rate conversion, distance extension, and multiple types of fixed fiber connectors or open slots for small form-factor pluggable (SFP) connections.
The IMC-450 and 470 support troubleshooting features such as Link Loss and Fiber Alert which can be enabled/disabled by DIP switches. The diagnostic features allow the network
administrator to quickly identify network faults. The IMC-470 series provides two 10/100/1000Mbps copper UTP ports and one fiber port. They are available in an SFP form factor,
as well as for fixed-fiber in single-mode and multi-mode. Link Fault Pass Through (LFPT) functionality allows network operators to determine a fault condition on the interface.
Design
Internal
Yes
LED indicators
Diagnostic
Logistics data
Harmonized System (HS) code
85176990
Network
Auto-negotiation
Yes
Converter input interface
1000Base-LX, 1000Base-SX, 1000Base-T
Link Loss Carry Forward (LLCF) supported
Yes
Maximum data transfer rate
1000 Mbit/s
Networking standards
IEEE 802.3ab
Operational conditions
Operating altitude
0 - 3048 m
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
-10 - 50 �C
Storage temperature (T-T)
-35 - 75 �C
Package dimensions
Gross Weight (Package, kg)
0.55 kg
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
Power
AC input frequency
50 - 60 Hz
Input current
1 A
Input voltage
110 - 240 V
Power consumption (max)
7 Watt
Product dimensions
Net Weight (Product, kg)
0.54 kg
Product Depth
10.1 cm
Product Height
2 cm
Product Width
10.1 cm
Technical details
Harmonized System (HS) code
85176990
Vendor information
Brand Name
Advantech
Warranty
2 Year(s)
