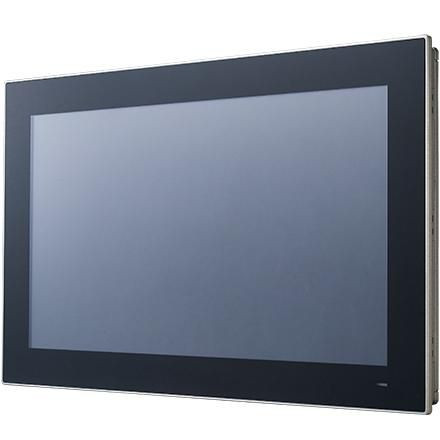

Advantech PPC-3181SW-P65B 18.5" Fanless Panel PC with PPC-3181SW-P65B

This Model: Only base unit
__________________________________________
The PPC-3181SW is an all-in-one light panel PC with a wide format 18.5" industrial-grade LCD. Powered by 6th generation Intel® Core™ i processor, PPC-3181SW provides excellent performance, memory, graphics, and peripheral I/O support in a compact, fanless, embedded system. With a high durability design, PPC-3181SW features a true-flat touchscreen with IP65-rated front panel, and die cast aluminum alloy enclosure, making it ideal for diverse applications.

Audio



Built-in speaker(s)



Yes


Number of built-in speakers



2


Speaker power



1 Watt


Certificates



Certification



CE, FCC Class B, BSMI


Design



International Protection (IP) code



IP65


Product colour



Black


Rack mounting



No


Display



Contrast ratio (typical)



1000:1


Display brightness



450 cd/m²


Display diagonal



18.5 "


Display included



Yes


Display resolution



1366 x 768 Pixels


Display type



LCD


Logistics data



Harmonized System (HS) code



84713000


Memory



Internal memory type



DDR4-SDRAM


Network



Cabling technology



10/100/1000Base-T(X)


Ethernet LAN



Yes


Operational conditions



Operating temperature (T-T)



0 - 50 °C


Storage temperature (T-T)



-20 - 60 °C


Package dimensions



Gross Weight (Package, kg)



7.5 kg


Ports & interfaces



Ethernet LAN (RJ-45) ports



2


Serial interface type



RS-232, RS-232/422/485


Serial ports quantity



2


USB 2.0 ports quantity



2


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


Product dimensions



Net Weight (Product, kg)



5.7 kg


Product Depth



6.17 cm


Product Height



30.9 cm


Product Width



48.8 cm


Vendor information



Brand Name


Advantech


Warranty



2 Year(s)
