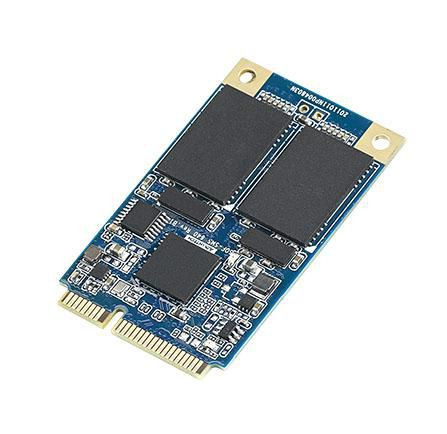

Advantech SQF-SMSM4-128G-SBE SOLID STATE DISK. SQF mSATA SQF-SMSM4-128G-SBE

Advantech SQFlash 640 series mSATA delivers all the advantages of Flash Disk technology with the Serial ATA III (6.0Gb) interface, fully compliant with standard mSATA form factor. The SQF-SMS is based on the mSATA form factor which is generated by JEDEC and could provide a wide range capacity from 16GB to 1TBB for MLC and 8GB to 512GB for UltraMLC which delivers the read / write performance up to 560MB/s and 495MB/s.

Features



Certification



CE, FCC


Data transfer rate



6 Gbit/s


Interface



Serial ATA III


Memory type



MLC


NVMe



No


S.M.A.R.T. support



Yes


SSD capacity



128 GB


SSD form factor



M.2


TRIM support



Yes


Operational conditions



Maximum operating temperature



85 �C


Minimum operating temperature



-40 �C


Operating relative humidity (H-H)



5 - 95 %


Operating shock



1.5 kg


Operating temperature (T-T)



-40 - 85 �C


Operating vibration



20 G


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-40 - 85 �C


Package dimensions



Gross Weight (Package, kg)



0.21000000000000002 kg


Power



Operating voltage



3.3 V


Product dimensions



Net Weight (Product, kg)



0.0002 kg


Product Depth



5.08 cm


Product Height



0.42 cm


Product Width



3 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Advantech


Warranty



3 Year(s)
