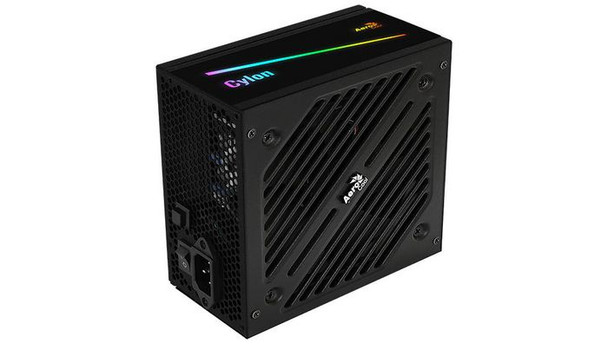

AeroCool ACPW-CE60AEC.11 Cylon 600W Power Supply Unit ACPW-CE60AEC.11
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- ACPW-CE60AEC.11
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
RGB POWER SUPPLY UNIT
Featuring an Elegant Backslash RGB LED Design, the Cylon PSU enhances the look and feel of your gaming setup while efficiently powering your system. Bring your system to life with 13 unique lighting effects that can be controlled via LED control button. Compatible with Addressable RGB motherboards using +5V Addressable RGB connector.
STYLISH RGB FLOW
The Cylon PSU comes equipped with RGB LED Lighting to power your system with style.
Bring your system to life with 13 unique lighting effects that can be controlled via LED control button.
ADDRESSABLE RGB COMPATIBLE
Stylize and personalize your lighting experience with 16.8 million colors. This power supply is compatible with Addressable RGB motherboards using +5V Addressable RGB connector.
UP TO 85%+ EFFICIENCY
80Plus 230V EU Standard Certified for high efficiency performance.
OPTIMIZED FAN RPM
Silent 12cm fan with optimized thermal fan speed control. Fan runs at startup speed (less than 800RPM) before reaching 60% load at 25℃ ambient temperatures.
CONVENIENT CABLE MANAGEMENT
Soft, black, flat cables allow for more convenient cable management and easier installation.
COMPATIBILITY
Compatible with all Intel form factors up to ATX12V Ver.2.4.
Design
Fan diameter
12 cm
Fan location
Top
Illumination
Yes
Number of fans
1 fan(s)
On/off switch
Yes
Product colour
Black
Package dimensions
Gross Weight (Package, kg)
0.65 kg
Performance
80 PLUS certification
80 PLUS
ATX version
2.4
Power supply unit (PSU) form factor
ATX
Purpose
PC
Ports & interfaces
ATX power connector (20+4 pin)
Yes
Cabling type
Non-Modular
CPU power cable length
55 cm
CPU power connector (4+4 pin)
Yes
Motherboard power cable length
50 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
5
PCI Express power connectors (6+2 pin)
2
Peripheral (Molex) power cable length
800, 950
Peripheral (Molex) power connectors (4-pin)
3
SATA power cable length
500, 650, 800
Power
AC input frequency
50 - 60 Hz
AC input voltage
200 - 240 V
Combined power (-12V)
3.6 Watt
Combined power (+12V)
540 Watt
Combined power (+3.3V)
120 Watt
Combined power (+5V)
120 Watt
Combined power (+5Vsb)
12.5 Watt
Efficiency
85 %
Input current
4 A
Max output current (-12V)
0.2 A
Max output current (+12V)
45 A
Max output current (+3.3V)
20 A
Max output current (+5V)
20 A
Max output current (+5Vsb)
2.5 A
Total power
600 Watt
Product dimensions
Net Weight (Product, kg)
0.5 kg
Vendor information
Brand Name
AeroCool
Warranty
1 Year(s)
View AllClose
Featuring an Elegant Backslash RGB LED Design, the Cylon PSU enhances the look and feel of your gaming setup while efficiently powering your system. Bring your system to life with 13 unique lighting effects that can be controlled via LED control button. Compatible with Addressable RGB motherboards using +5V Addressable RGB connector.
STYLISH RGB FLOW
The Cylon PSU comes equipped with RGB LED Lighting to power your system with style.
Bring your system to life with 13 unique lighting effects that can be controlled via LED control button.
ADDRESSABLE RGB COMPATIBLE
Stylize and personalize your lighting experience with 16.8 million colors. This power supply is compatible with Addressable RGB motherboards using +5V Addressable RGB connector.
UP TO 85%+ EFFICIENCY
80Plus 230V EU Standard Certified for high efficiency performance.
OPTIMIZED FAN RPM
Silent 12cm fan with optimized thermal fan speed control. Fan runs at startup speed (less than 800RPM) before reaching 60% load at 25℃ ambient temperatures.
CONVENIENT CABLE MANAGEMENT
Soft, black, flat cables allow for more convenient cable management and easier installation.
COMPATIBILITY
Compatible with all Intel form factors up to ATX12V Ver.2.4.
Design
Fan diameter
12 cm
Fan location
Top
Illumination
Yes
Number of fans
1 fan(s)
On/off switch
Yes
Product colour
Black
Package dimensions
Gross Weight (Package, kg)
0.65 kg
Performance
80 PLUS certification
80 PLUS
ATX version
2.4
Power supply unit (PSU) form factor
ATX
Purpose
PC
Ports & interfaces
ATX power connector (20+4 pin)
Yes
Cabling type
Non-Modular
CPU power cable length
55 cm
CPU power connector (4+4 pin)
Yes
Motherboard power cable length
50 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
5
PCI Express power connectors (6+2 pin)
2
Peripheral (Molex) power cable length
800, 950
Peripheral (Molex) power connectors (4-pin)
3
SATA power cable length
500, 650, 800
Power
AC input frequency
50 - 60 Hz
AC input voltage
200 - 240 V
Combined power (-12V)
3.6 Watt
Combined power (+12V)
540 Watt
Combined power (+3.3V)
120 Watt
Combined power (+5V)
120 Watt
Combined power (+5Vsb)
12.5 Watt
Efficiency
85 %
Input current
4 A
Max output current (-12V)
0.2 A
Max output current (+12V)
45 A
Max output current (+3.3V)
20 A
Max output current (+5V)
20 A
Max output current (+5Vsb)
2.5 A
Total power
600 Watt
Product dimensions
Net Weight (Product, kg)
0.5 kg
Vendor information
Brand Name
AeroCool
Warranty
1 Year(s)
