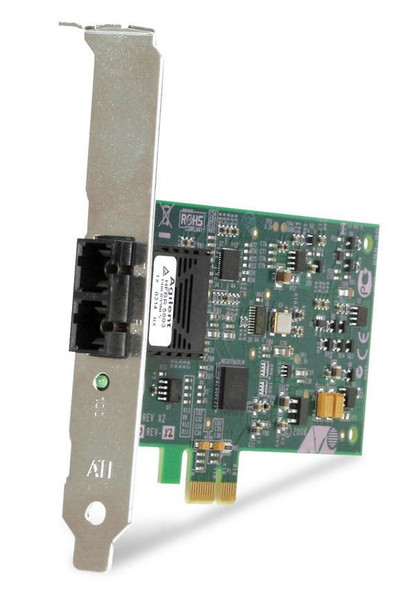

Allied Telesis AT-2711FX/ST-901 100Fx Desktop Pci-E Fiber AT-2711FX/ST-901

More Bandwidth with PCI-Express Interface

AT-2711FX x1 PCI-Express (PCI-e�) design gives you the maxim possible bandwidth and bus efficiency, other benefits are: capability and Low Power Consumption.

Easy Migration Path for AT-2701FX Users

For the current customers who are using Allied Telesis� 100Mbps Fiber cards (AT-2701FX), and want to upgrade their systems to PCI-Express, AT-2711FX is the ultimate solution.The customers can continue using their existing 100Mbps Fiber network without adding any more new equipment. For new customers equipped with PCI-Express systems,AT-2711FX gives them the ability to easily build or connect to the Fast Ethernet Fiber networks.

Advanced Manageability

The priority queuing offered by AT-2711FX can help users set up the network based on their own needs.The comprehensive diagnostics and configuration software suite provides system administrators and engineers with a profound tool to analyze the network adapter and check
specific data.

High Reliability

The AT-2711FX Fast Ethernet Fiber Adapter comes with a comprehesive Windows utility that performs detailed tests, diagnostics, and analysis.

Design



Certification



FCC/EN55022 Class B EN55024 Class B UL1950 CE TUV


Logistics data



Harmonized System (HS) code



85176990


Network



Full duplex



Yes


Maximum data transfer rate



100 Mbit/s


Wake-on-LAN ready



Yes


Operational conditions



Operating relative humidity (H-H)



0 - 90 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-25 - 70 �C


Other features



Compliance industry standards



IEEE 802.3u, IEEE 802.1p


Connector(s)



ST


Flow control support



Yes


Package dimensions



Gross Weight (Package, kg)



0.26 kg


Ports & interfaces



Connectivity technology



Wired


Host interface



PCI Express


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Height



12.1 cm


Product Width



6.9 cm


System requirements



Compatible operating systems



Windows 2000 Windows XP/2003 (32/64-bit) Linux 2.4.x Netware NDIS2


Vendor information



Brand Name


Allied Telesis


Warranty



1 Year(s)
