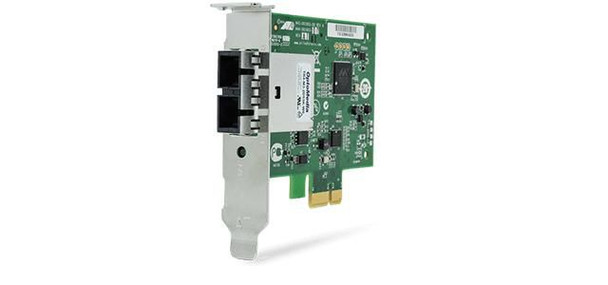

Allied Telesis AT-2914SX/SC-901 2914Sx/Sc Internal Fiber 1000 AT-2914SX/SC-901

PCI Express Gigabit Network Adapters with Wake-on-LAN (WoL) Support

The Allied Telesis 2914SX/SC is a gigabit PCIe x1 network adapter with a fixed SC connector. It supports Wake-on-LAN without the use of an external power supply.

Design



Certification



UL, FCC/EN55022 Class A, TUV, EN55024, CE, C-TICK, VCCI


Internal



Yes


LED indicators



Y, Yes


Logistics data



Harmonized System (HS) code



85176990


Network



Auto-negotiation



Yes


Jumbo frames



9600


Jumbo frames support



Yes


Load balancing system



Yes


Maximum data transfer rate



1000 Mbit/s


Networking standards



IEEE 802.1Q, IEEE 802.1p, IEEE 802.2, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3z


Quality of Service (QoS) support



Yes


Security algorithms



SNMP


Wake-on-LAN ready



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



0 - 50 �C


Storage temperature (T-T)



-25 - 70 �C


Other features



Flow control support



Yes


Package dimensions



Gross Weight (Package, kg)



0.26 kg


Ports & interfaces



Connectivity technology



Wired


Fiber optic connector



SC


Fiber ports quantity



2


Host interface



PCI Express


Interface



Fiber


Power



Power consumption (typical)



1.7 Watt


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Height



6.9 cm


Product Width



8.8 cm


Sustainability



Sustainability certificates



RoHS


System requirements



Linux operating systems supported



Yes


Server operating systems supported



Windows Server 2016, Windows Server 2019


Windows operating systems supported



Windows 10, Windows 7


Vendor information



Brand Name


Allied Telesis


Warranty



1 Year(s)
