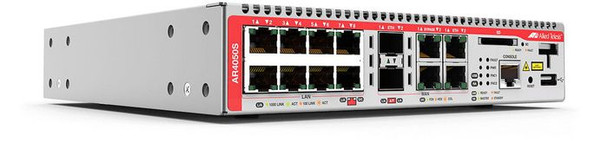

Allied Telesis AT-AR4050S-30 Hardware Firewall 1900 Mbit/S AT-AR4050S-30

The AR4050S UTM Firewall consolidates threat protection, application and web control capabilities into a single device - ensuring the security of business communications. Together with advanced routing and switching, the high-performance AR4050S integrated security platform is the ideal choice for Enterprise gateway applications.

The quad-core processor delivers powerful performance, significantly increasing throughput and enabling simultaneous packet inspection. It is optimized for single-pass low-latency traffic inspection. Security engines and threat signature databases from the industry�s leading vendors, with regular updates, provide up-to-the-minute protection against malware, viruses and other cyber-attacks.

- High availability bypass ports allow device redundancy with a single WAN link, reducing ongoing ISP fees. If the Master firewall loses power, traffic is automatically forwarded to the backup device.
- A USB interface supports 3G/4G connectivity, so data transfer can automatically switch to a mobile network when a primary WAN connection becomes unavailable.
- An SD card slot allows easy backup of important files.
- Autonomous Management Framework� (AMF) compatibility automates device back-up for plug-and-play recovery.

Data transmission



Firewall throughput



1900 Mbit/s


IPS/IDS throughput



750 Mbit/s


Maximum firewall connections per second



12000


VPN throughput



1000 Mbit/s


Memory



Internal memory



2048 MB


Network



DHCP client



Yes


DHCP server



Yes


Multicast support



Yes


Point-to-point protocol over Ethernet (PPPoE)



Yes


Port forwarding



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 80 %


Operating temperature (T-T)



0 - 50 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-25 - 70 �C


Package dimensions



Gross Weight (Package, kg)



4.69 kg


Performance



Built-in processor



Yes


Concurrent connections



300000


Noise level



28.4 dB


Processor cores



2


Processor frequency



1560 MHz


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



8


USB 2.0 ports quantity



1


WAN connection



Ethernet (RJ-45)


Power



AC input frequency



47/63 Hz


AC input voltage



90-260 V


Power consumption (typical)



27 Watt


Product dimensions



Net Weight (Product, kg)



3.61 kg


Protocols



Routing protocols



BGP4, OSPF, RIP-1, RIP-2


Storage



Flash memory



4096 MB


Vendor information



Brand Name


Allied Telesis


Warranty



1 Year(s)


Weight & dimensions



Dimensions (WxDxH)



425 x 210 x 220 mm
