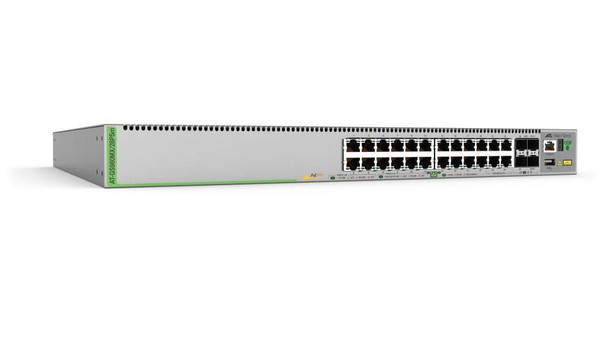

Allied Telesis AT-GS980MX/28PSM50 At-Gs980Mx/28Psm-50 Network AT-GS980MX/28PSM50

Stackable Multi-Gigabit Layer 3 Lite Switches

The GS980MX Series of stackable Layer 3 Lite switches feature high capacity, resiliency, and easy management. With Multi-Gigabit ports and Power over Ethernet, and available in both compact and high port density models, they provide an ideal choice for high-speed connectivity at the network edge.

- Support high-speed Wi-Fi 6 solutions, and network upgrades over legacy cabling, with 2.5G and 5G connectivity (PoE models)
- Connect and power endpoints such as IP phones, wireless APs, and more with up to 30 Watts of PoE+
- Support high-power devices such as outdoor PTZ cameras with heaters/blowers and enhanced lighting controllers, with up to 90 Watts of PoE++ (10 and 18 port models)
- Build a resilient network with the ability to stack multiple units using VCStack�
- Extend network reach in distributed environments using long-distance stacking
- Reduce costs and automate network management with Autonomous Management Framework� Plus (AMF Plus)

Data transmission



Forwarding rate



119 Mpps


Jumbo frames



10000


Jumbo frames support



Yes


MAC address table



16000 entries


Number of queues



8


Packet buffer memory



1.5 MB


Static route



Yes


Switching capacity



160 Gbit/s


Design



Certification



EN55024 FCC Class A, EN55032 Class A, EN61000-3-2, EN61000-3-3, VCCI Class A, RCM EN55024, EN61000-3-levels 2 UL60950-1, CSA-C22.2 No. 60950-1, EN60950-1, UL62368-1 cUL, cULus


Form factor



1U


LED indicators



Y, Yes


Product colour



Grey


Rack mounting



Yes


Stackable



Yes


Management features



ARP inspection



Yes


Configuring Location Settings (CLI)



Yes


Quality of Service (QoS) support



Yes


Switch layer



L3


Switch type



Managed


System event log



Yes


Traffic classification



Yes


Web-based management



Yes


Multicast features



Multicast support



Yes


Network



10G support



Yes


Copper ethernet cabling technology



10BASE-T, 100BASE-TX, 1000BASE-T


Ethernet LAN data rates



10, 100, 1000, 2500, 5000


Link aggregation



Yes


Networking standards



IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Number of VLANs



4094


Port mirroring



Yes


Spanning tree protocol



Yes


Virtual LAN features



Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN


VLAN support



Yes


Operational conditions



Heat dissipation



1741 BTU/h


Operating altitude



0 - 3000 m


Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



0 - 50 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-25 - 70 �C


Package dimensions



Depth (package,cm)



53.4 cm


Gross Weight (Package, kg)



1.3 kg


Height (package,cm)



12.8 cm


Width (package,cm)



56.3 cm


Performance



Flash memory



256 MB


Internal memory



1000 MB


Memory type



DDR3-SDRAM


Noise level



42 dB


Physical stacking (units)



2


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



20


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Console port



USB


Gigabit Ethernet (copper) ports quantity



24


Installed SFP+ modules quantity



4


Power



Power consumption (max)



510 Watt


Power consumption (typical)



70 Watt


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet (PoE) power per port



30 Watt


Power over Ethernet plus (PoE+) ports quantity



24


Total Power over Ethernet (PoE) budget



370 Watt


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



42.1 cm


Product Height



4.4 cm


Product Width



44.1 cm


Protocols



Management protocols



SNMPv1, v2c, v3


Routing protocols



RIP, RIP-2, RIPng


Security



Access Control List (ACL)



Yes


Authentication



MAC-based authentication, Port-based authentication, Web-based authentication


BPDU filtering/protection



Yes


DHCP features



DHCP Option 82, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay


IGMP snooping



Yes


Loop protection



Yes


MAC address filtering



Yes


Queue scheduling algorithms



SP, WRR+SP, Weighted Round Robin (WRR)


Security algorithms



3DES, AES, MD5, SHA-1, SHA-2, SHA-256, SHA-384, SHA-512, SSH, SSH-2, SSL/TLS


Sustainability



Sustainability certificates



RoHS, TUV


Sustainability compliance



Yes


Vendor information



Brand Name


Allied Telesis


Warranty



1 Year(s)
