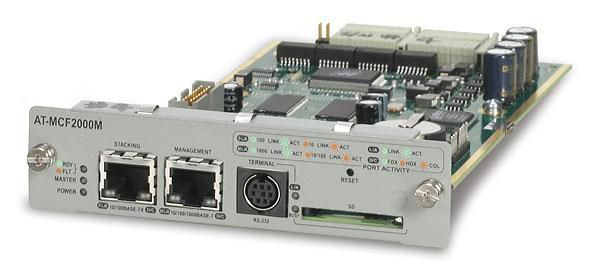

Allied Telesis AT-MCF2000M SNMP MANAGEMENT MODULE AT-MCF2000M

The AT-MCF2000 is an end-to-end managed media conversion system. The 1RU chassis can hold either one or two multichannel blades, providing a maximum of 24 independent channels. An optional management module provides control of the chassis, while dual hot swappable power modules ensure maximum system uptime.

The AT-MCF2000M is the management module for the AT-MCF2000 two-slot chassis. With the AT-MCF2000M management module, if there is a blade failure, insertion or removal, your traffic flow will not be interupted.

Features



LED indicators



Yes


Network



Compliance industry standards



IEEE 802.3, IEEE 802.3, IEEE 802.3u, IEEE 802.3u, IEEE 802.3z


Connectivity technology



Wired


Package dimensions



Depth (package,cm)



27 cm


Gross Weight (Package, kg)



0.63 kg


Height (package,cm)



10 cm


Width (package,cm)



26 cm


Performance



Management platform



SNMP, Telnet


Ports & interfaces



I/O ports



1x 10/100/1000T RJ-45 (auto MDI/MDI-X) 1x 10/100TX RJ-45 (auto MDI/MDI-X) 1x RJ-45 RS232 1x CF


Product dimensions



Net Weight (Product, kg)



0.45 kg


Vendor information



Brand Name


Allied Telesis


Warranty



1 Year(s)
