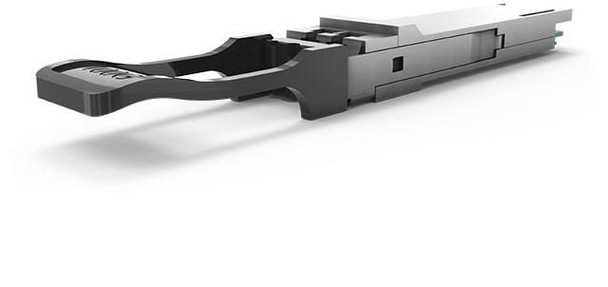

Allied Telesis AT-QSFP28LR4 Qsfp28-Lr4 Network AT-QSFP28LR4

Quad Small Form-Factor Pluggable Modules
The Allied Telesis QSFP28 Series offers the latest industry-standard
connectivity in a flexible, small form factor. These hot-swappable
transceiver modules simply plug into any compatible Allied Telesis product.

Options
Allied Telesis QSFP28 Series 100 Gigabit Quad Small Form-Factor Pluggables (QSFPs) are supported on all Allied Telesis devices with QSFP28 uplink connections.

The QSFP28 is hot-swappable to allow for network changes without removal or reconfiguration of costly network equipment.

Applications
The QSFP28 Series supports 100GbE interconnects. They are ideal for Datacom/Telecom switch and router connections, as well as data aggregation, backplane, proprietary protocol and high-density applications.

Interoperability
The Allied Telesis QSFP28 is fully compliant with industry-standard networking regulations so it may be used on any networking equipment which complies with industry standards.

Features



Product colour



Silver


Operational conditions



Operating relative humidity (H-H)



0 - 85 %


Operating temperature (T-T)



0 - 70 �C


Storage temperature (T-T)



-40 - 85 �C


Package dimensions



Gross Weight (Package, kg)



0.03 kg


Packaging data



Number of products included



1 pc(s)


Performance



Digital Diagnostics Monitoring (DDM)



Yes


Ethernet interface type



100 Gigabit Ethernet


Fiber optic connector



LC


Interface type



QSFP28


Link budget



5 dB


Maximum data transfer rate



100000 Mbit/s


Maximum transfer distance



10000 m


Networking standards



IEEE 802.3ba, IEEE 802.3bm


SFP transceiver standard



LR4


SFP transceiver type



Fiber optic


Single-mode fiber (SMF) supported



Yes


Wavelength



1308 nm


Power



Power consumption (typical)



4 Watt


Product dimensions



Net Weight (Product, kg)



0.02 kg


Technical details



Sustainability certificates



RoHS


Sustainability compliance



Yes


Vendor information



Brand Name


Allied Telesis


Warranty



1 Year(s)
