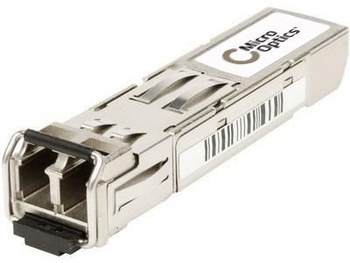

Allied Telesis AT-SPSX-90 Network Transceiver Module AT-SPSX-90

Gigabit Small Form-Factor Pluggable Modules
The Allied Telesis SP Series delivers flexible, full-duplex Ethernet connectivity. These hot-swappable fiber and copper interfaces simply plug into the SFP slot on all SFP-compatible devices. Configuration can be optimized to meet a wide variety of distance and service requirements.

Compatibility
Allied Telesis SP Series Gigabit Small Form-Factor Pluggables (SFPs) are supported on all Allied Telesis devices with SFP uplink connections.

SP Series SFPs are Multi-Sourcing Agreement (MSA)-compliant, and fully adhere to industry standard networking regulations. This allows the SP Series to be used with other MSA-compliant platforms that support SFP uplink connections.

For Cisco compatibility please refer to the �SFP Compatibility Flyer�.

Options
SP Series SFPs offer short-haul,
long-haul and Bi-Directional (BiDi) solutions. This flexibility allows network managers to easily extend network distance and bandwidth.

Using an SFP BiDi transceiver can upgrade transmission capacity on a typical network�without installing new fibers�by utilizing a single fiber for both the send and receive signals.

Multiple temperature ranges
Different network environments call for a variety of temperature ranges. The SP Series is available in standard (0-70�C), industrial (-40 to 85�C), and extended (-40 to 105�C) temperature variants.

Features



Hot-swap



Yes


Housing material



Metal


Plug and Play



Yes


Product colour



Silver


Operational conditions



Operating temperature (T-T)



-40 - 105 �C


Other features



RX sensitivity



-19 dB


Package dimensions



Gross Weight (Package, kg)



0.03 kg


Packaging data



Number of products included



1 pc(s)


Performance



Fiber optic connector



LC


Interface type



SFP


Link budget



11 dB


Maximum data transfer rate



1000 Mbit/s


Maximum transfer distance



550 m


Multi-mode fiber (MMF) supported



Yes


SFP transceiver type



Fiber optic


Tx power (max)



-3 dBmW


Tx power (min)



-8 dBmW


Wavelength



850 nm


Product dimensions



Net Weight (Product, kg)



0.02 kg


Vendor information



Brand Name


Allied Telesis


Warranty



1 Year(s)
