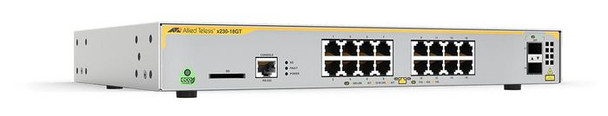

Allied Telesis AT-X230-18GT-30 X230-18Gt Managed L3 Gigabit AT-X230-18GT-30

Gigabit Edge Switch
The Allied Telesis x230-18GT features 16 x 10/100/1000T ports with 2 SFP Gigabit uplink ports. A full feature-set and compact design makes it ideal for applications at the network edge, supporting Gigabit to the desktop for maximum network performance.

Data transmission



MAC address table



16000 entries


Switching capacity



36 Gbit/s


Throughput



26.8 Mpps


Design



LED indicators



Y, Yes


Product colour



Grey


Rack mounting



Yes


Safety



UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1


Stackable



Yes


Management features



ARP inspection



Yes


MIB support



Y


Quality of Service (QoS) support



Yes


Switch layer



L3


Switch type



Managed


System event log



Yes


Web-based management



Yes


Multicast features



Multicast support



Yes


Network



10G support



No


Flow control support



Yes


Full duplex



Yes


Link aggregation



Yes


Networking standards



IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Port mirroring



Yes


Spanning tree protocol



Yes


VLAN support



Yes


Operational conditions



Heat dissipation



61 BTU/h


Operating altitude



0 - 3048 m


Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



0 - 50 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-25 - 70 �C


Package dimensions



Depth (package,cm)



36 cm


Gross Weight (Package, kg)



1.3 kg


Height (package,cm)



15 cm


Width (package,cm)



43 cm


Performance



Internal memory



256 MB


Noise level



18 dB


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



16


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Combo SFP ports quantity



2


Power connector



DC-in jack


Power



AC input frequency



47/63 Hz


AC input voltage



90 - 260 V


Power consumption (typical)



18 Watt


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



23.1 cm


Product Height



4.4 cm


Product Width



34.1 cm


Security



Access Control List (ACL)



Yes


DHCP features



DHCP server, DHCP client


IGMP snooping



Yes


Security algorithms



802.1x RADIUS


Vendor information



Brand Name


Allied Telesis


Warranty



1 Year(s)
