Allied Telesis

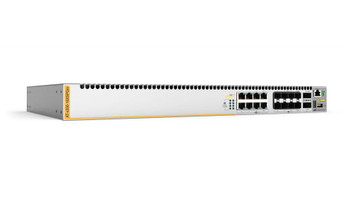

Allied Telesis AT-X550-18XSPQM-30 X550-18Xspqm Managed 10G AT-X550-18XSPQM-30
- UPC:
- 0000000000000
- MPN:
- AT-X550-18XSPQM-30
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Stackable 10 Gigabit Intelligent Switches
The x550-18XSPQm stackable 10 Gigabit Layer 3 switch is a high-performing and feature-rich solution, with 8 x 1G/10G SFP+ slots, 8 x 1G/10G Ethernet ports, and 2 x 40G uplinks.
Data transmission
Forwarding rate
357.1 Mpps
Jumbo frames support
Yes
Latency (1 Gbps)
3.8 �s
Latency (10 Gbps)
3 �s
Latency (10-100 Mbps)
2.3 �s
MAC address table
16000 entries
Number of queues
8
Packet buffer memory
4 MB
Switching capacity
480 Gbit/s
Design
Product colour
Silver
Safety
UL, cUL, TUV
Stackable
Yes
Management features
Switch type
Managed
Network
10G support
Yes
IP routing
Yes
Link aggregation
Yes
Networking standards
IEEE 1588, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
Number of VLANs
4094
Port mirroring
Yes
VLAN support
Yes
Operational conditions
Heat dissipation
1334 BTU/h
Operating altitude
0 - 3048 m
Operating relative humidity (H-H)
5 - 90 %
Operating temperature (T-T)
0 - 45 �C
Storage relative humidity (H-H)
5 - 95 %
Storage temperature (T-T)
-25 - 70 �C
Optical fiber
Switching optical modules type
40 Gigabit Ethernet
Package dimensions
Gross Weight (Package, kg)
1.3 kg
Performance
Flash memory
1024 MB
Internal memory
1024 MB
Memory type
DDR-SDRAM
Noise level
47 dB
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
Installed SFP+ modules quantity
8
Power
Power consumption (max)
391 Watt
Power consumption (typical)
99 Watt
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
30 Watt
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
240 Watt
Product dimensions
Net Weight (Product, kg)
1 kg
Product Depth
26 cm
Product Height
4.4 cm
Product Width
44 cm
Security
BPDU filtering/protection
Yes
DHCP features
DHCP client
Vendor information
Brand Name
Allied Telesis
Warranty
1 Year(s)
