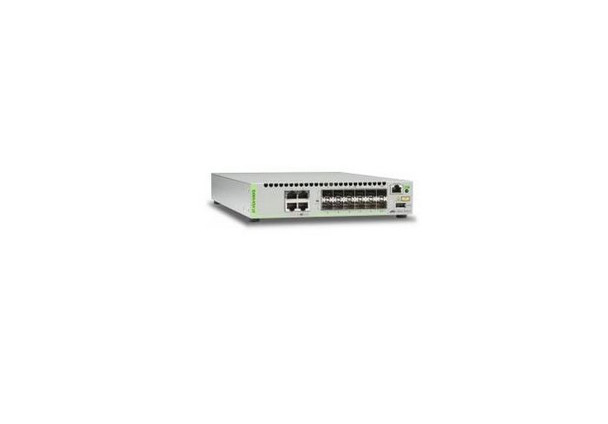

Allied Telesis AT-XS916MXS-30 Network Switch Managed L3 10G AT-XS916MXS-30

Layer 3 10G Stackable Managed Switches
The AT-XS916MXT and AT-XS916MXS switches offer cost effective, high-speed 10G connectivity for servers and storage, and support 100/1000 connections for existing networks. The XS900MX Series enable a highly flexible and reliable network, which can easily scale to meet increasing traffic demands.

Overview
The XS900MX Series are the ideal 10G access switches for enterprise networks or anywhere a relay switch with 10G uplink is required. The switches also make the ideal core or aggregation switch, to connect servers and storage in a small network.The AT-XS916MXT features 12 x 100/1000/10GBASE-T and 4 x SFP+ slots. The AT-XS916MXS features 4 x 100/1000/10GBASE-T and 12 x SFP+ slots.

Easy management
The XS900MX Series switches feature Allied Telesis Management FrameworkTM (AMF), a sophisticated suite of management tools that provides a simplified approach to network management. Common tasks are automated or made so simple that the everyday running of a network can be achieved without the need for highly trained, and expensive, network engineers. Powerful features like centralized management, auto-backup, auto-upgrade, auto-provisioning and auto-recovery enable plug-and-play networking and zero-touch management.

Resiliency
Ethernet Protection Switching Ring (EPSRingTM) and 10 Gigabit Ethernet allow several XS900MX Series switches to form a protected ring capable of recovery within as little as 50ms. This feature is perfect for high performance and high availability in enterprise networks.

Data transmission



Jumbo frames support



Yes


MAC address table



16000 entries


Number of queues



8


Switching capacity



320 Gbit/s


Throughput



238 Mpps


Design



Product colour



Grey


Rack mounting



No


Stackable



Yes


Management features



ARP inspection



Yes


Quality of Service (QoS) support



Yes


Switch layer



L3


Switch type



Managed


System event log



Yes


Traffic classification



Yes


Web-based management



Yes


Multicast features



Multicast support



Yes


Network



10G support



Yes


Flow control support



Yes


Full duplex



Yes


IP routing



Yes


Link aggregation



Yes


Networking standards



IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3x, IEEE 802.3z


Port mirroring



Yes


Spanning tree protocol



Yes


VLAN support



Yes


Operational conditions



Heat dissipation



180 BTU/h


Operating altitude



0 - 3000 m


Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



0 - 50 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-25 - 70 �C


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Performance



Flash memory



96 MB


Noise level



42 dB


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



4


Basic switching RJ-45 Ethernet ports type



10G Ethernet (100/1000/10000)


SFP+ module slots quantity



12


Power



AC input frequency



47/63 Hz


AC input voltage



100 - 240 V


Number of power supply units



1


Power consumption (max)



53 Watt


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



21 cm


Product Height



4.3 cm


Product Width



32.3 cm


Protocols



Management protocols



SNMP


Security



Access Control List (ACL)



Yes


Authentication



MAC-based authentication


BPDU filtering/protection



Yes


DHCP features



DHCP client


IGMP snooping



Yes


Loop protection



Yes


SSH/SSL support



Yes


Vendor information



Brand Name


Allied Telesis


Warranty



1 Year(s)
