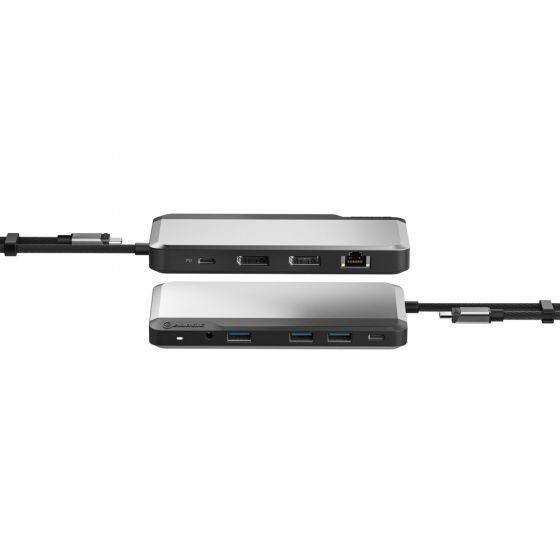

Alogic U1CAD-SGR Laptop Dock/Port Replicator U1CAD-SGR

Nine Ways to Enhance Your Workspace

Ports for a Better Desk Many modern laptops are missing the ports professionals need to connect essential USB accessories and displays at their desk. With the nine-port MX2 on your desk, you can connect two pristine DisplayPort-enabled computer monitors for multi-screen activities. You can run all your standard IT peripherals, including keyboard, mouse, printer and phone. Play back audio over headphones while you work and connect to Ethernet when you need a reliable connection for activities such as video conferencing.

Full HD for Focused Work

It�s Clearer in Full HD The MX2 features two DisplayPort ports for dual Full HD [@60Hz] displays on Windows laptops and desktops [with USB-C or Thunderbolt 3&4 with video output] *Dual displays save you time otherwise squandered on toggling between applications on single screens. MX2 users also benefit from sharp display resolutions for visually detailed tasks such as image editing and design and layout work. *See resolution support table below for full details of the resolutions and video outputs your computer is capable of.

A Featherweight Dock for Heavyweight Performance

Ports. Power. Portability. The MX2 weighs just 138 grams and occupies less space than a mobile phone. With premium metal alloy casing, the warranty-backed dock is a smart choice for households who need a take-anywhere dock for home, office and on the go.

Network



Ethernet LAN



Yes


Ethernet LAN (RJ-45) ports



1


Ethernet LAN data rates



1000


Package dimensions



Gross Weight (Package, kg)



2.47 kg


Packaging content



Manual



Yes


Packaging data



Quantity per pack



1 pc(s)


Performance



Cable lock slot



Yes


Card reader integrated



No


LED indicators



Y, Yes


Maximum digital resolution



3840 x 2160 Pixels


Maximum refresh rate



60 Hz


Plug and Play



Yes


Product colour



Grey


Ports & interfaces



Combo headphone/mic port



Yes


Connectivity technology



Wired


DC-in jack



Yes


DisplayPort version



1.4


DisplayPorts quantity



2


Headphone connectivity



3.5 mm


Host interface



USB 3.2 Gen 1 (3.1 Gen 1) Type-C


Microphone in



No


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



3


USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity



2


USB Power Delivery



Yes


USB Power Delivery up to



85 Watt


Product dimensions



Net Weight (Product, kg)



1.9 kg


Product Depth



13.9 cm


Product Height



1.63 cm


Product Width



6.2 cm


Vendor information



Brand Name


Alogic


Warranty



1 Year(s)
