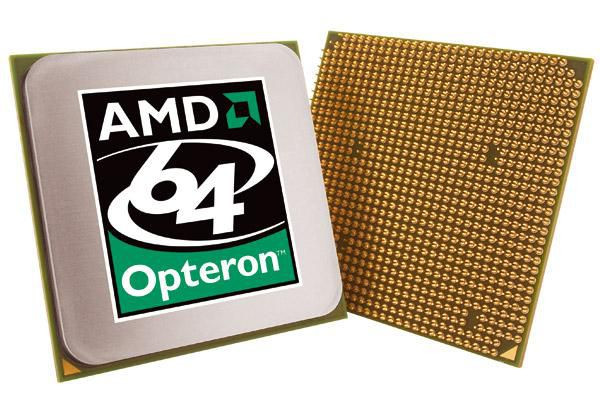

AMD OSA8218GAA6CR-RFB Opteron 8218 2.6GHZ S1207 OSA8218GAA6CR-RFB

The AMD Opteron� processor helps enable a breakthrough in high-performance, low power processing for edge-of-enterprise markets including storage and telecommunications, as well as more traditional embedded markets such as security and medical imaging, military systems, and single-board computing. AMD64 technology with Direct Connect Architecture helps provide a balanced foundation for embedded systems. Based on the industry-standard x86 platform, AMD64 delivers the right match of processing power, memory performance, I/O throughput, and scalability. Add the vision of 32- and 64-bit application support with native multi-core computing in a consistent thermal envelope and many embedded designers are finding their AMD Opteron� processor-based next-generation systems deliver superior application performance.

- HyperTransport� technology provides up to 17.6GB/s per link in HT 3.0 generation, and is compatible with HT 1.0 generation implementation.
- On-die integrated DDR2 memory controller offers available memory bandwidth up to 12.8GB/s (with DDR2-800) per processor.
- Hardware assisted AMD Virtualization� technology in AMD Opteron processors with DDR2 helps streamline the efficiency of multiple servers and provides virtual machine memory isolation for improved security.
- Socket F (1207) provides system upgrade option from dualcore to quad-core in the same physical foorprint with future upgrade to six-core when they become available.

Operational conditions



Maximum operating temperature



72 �C


Other features



L1 cache



0.125 MB


Package dimensions



Gross Weight (Package, kg)



1.2 kg


Power



Processor core voltage (AC)



1.30/1.35 V


Thermal Design Power (TDP)



95 Watt


Processor



Box



No


L2 cache speed



2.6 GHz


Processor base frequency



2.6 GHz


Processor cache



1 MB


Processor cache type



L2


Processor core voltage (AC)



1.30/1.35 V


Processor cores



2


Processor family



AMD Opteron


Processor frequency



2.6 GHz


Processor front side bus



1000 MHz


Processor lithography



90 nm


Processor manufacturer



AMD


Processor operating modes



64-bit


Processor socket



Socket F (1207)


Stepping



F2


Thermal Design Power (TDP)



95 Watt


Product dimensions



Net Weight (Product, kg)



1 kg


Vendor information



Brand Name


AMD


Warranty



1 Year(s)
