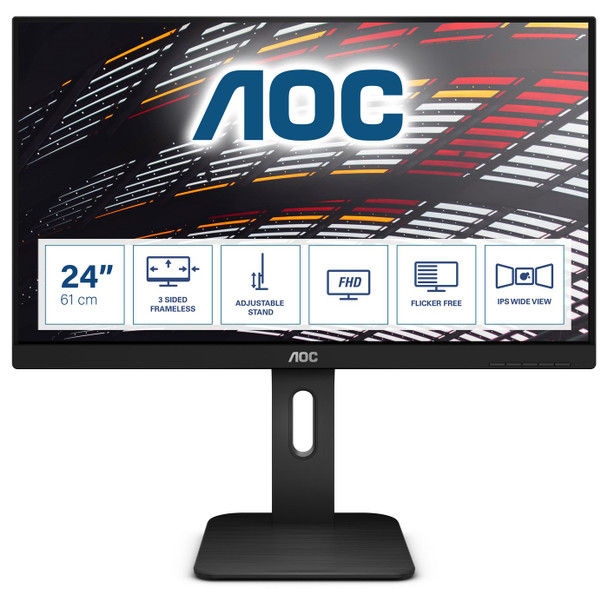

AOC X24P1 X24P1 24IN IPS X24P1

24�, 3-sides frameless IPS display with 16:10 aspect ratio
The 16:10 aspect ratio and 1920x1200 resolution of the 24" sized, 3-sides frameless X24P1 is suited perfectly for productivity tasks (spreadsheets, texts). X24P1 comes with a fully adjustable stand with 150 mm height range, capable of pivot mode. It is also fully equipped with VGA, DVI, HDMI and DisplayPort inputs, a built-in USB 3.0 hub and speakers.

Design



Certification



ISO 9241-307


Detachable stand



Yes


Feet colour



Black


Front bezel colour



Black


Heavy metals free



Hg (mercury)


Market positioning



Business


Product colour



Black


Display



3D



No


Adobe RGB coverage



77 %


Aspect ratio



16:10


Backlight type



W-LED


Colour depth



6 bit


Contrast ratio (dynamic)



50000000:1


Contrast ratio (typical)



1000:1


Digital horizontal frequency



30 - 83 kHz


Display brightness (typical)



300 cd/m�


Display diagonal



24 "


Display diagonal (metric)



60.96 cm


Display number of colours



16.7 million colours


Display resolution



1920 x 1200 Pixels


Display surface



Matt


Display technology



LED


HD type



WUXGA


Horizontal scan range



30 - 83 kHz


Maximum refresh rate



60 Hz


Native aspect ratio



16:10


Panel type



IPS


Pixel pitch



0.27 x 0.27 mm


Response time



4 Millisecond


Screen shape



Flat


sRGB coverage (typical)



99 %


Supported graphics resolutions



1920 x 1200 (WUXGA)


Surface hardness



3H


Touchscreen



No


Vertical scan range



50 - 76 Hz


Viewable size, horizontal



59.673 cm


Viewable size, vertical



33.566 cm


Viewing angle, horizontal



178 �


Viewing angle, vertical



178 �


Ergonomics



Cable lock slot



Yes


Height adjustment



Yes


Height adjustment



15 cm


Number of OSD languages



16


On Screen Display (OSD)



Yes


On Screen Display (OSD) languages



Simplified Chinese, Traditional Chinese, Croatian, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian


Panel mounting interface



100 x 100


Pivot



Yes


Pivot angle



1 - 90 �


Plug and Play



Yes


Swivel angle range



-175 - 175 �


Swivelling



Yes


Tilt adjustment



Yes


Tilt angle range



-5 - 35 �


VESA mounting



Yes


Logistics data



Harmonized System (HS) code



85285210


Multimedia



Built-in camera



No


Built-in microphone



No


Built-in speaker(s)



Yes


Number of speakers



2


RMS rated power



2 Watt


Operational conditions



Non-operating altitude



5000 - 12192 m


Operating altitude



0 - 5000 m


Operating relative humidity (H-H)



10 - 85 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



5 - 93 %


Storage temperature (T-T)



-25 - 55 �C


Other features



Bezel thickness type



Frameless


Exterior finish type



Textured


Light effects



No


Mean time between failures (MTBF)



50000 Hour


On/off switch



Yes


Recyclable packaging material



100 %


TV tuner integrated



No


Package dimensions



Depth (package,cm)



16.8 cm


Gross Weight (Package, kg)



7.5 kg


Height (package,cm)



42.2 cm


Width (package,cm)



75.2 cm


Packaging content



Audio cable length



1.8 m


Cables included



AC, Audio (3.5mm), DisplayPort, HDMI, USB


DisplayPort cable length



1.8 m


HDMI cable length



1.8 m


Power cable length



1.8 m


Stand included



Yes


Packaging data



USB cable length



1.8 m


Performance



Compatibility



VESA-P1


Fast charging



Yes


Flicker-free technology



Yes


Low Blue Light technology



Yes


NVIDIA G-SYNC



No


Ports & interfaces



Audio input



Yes


Built-in USB hub



Yes


DisplayPort version



1.2


DisplayPorts quantity



1


DVI port



Yes


HDMI ports quantity



1


HDMI version



1.4


Headphone connectivity



3.5 mm


Headphone out



Yes


Headphone outputs



1


Microphone in



Yes


USB hub version



3.2 Gen 1 (3.1 Gen 1)


USB Type-A downstream ports quantity



4


VGA (D-Sub) ports quantity



1


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Energy consumption (SDR) per 1000 hours



18 kWh


Energy efficiency class (SDR)



E


Energy efficiency scale



A to G


External power adapter



No


Power consumption (off)



0.23 Watt


Power consumption (standby)



0.32 Watt


Power consumption (typical)



16.73 Watt


Product dimensions



Net Weight (Product, kg)



7.46 kg


Product Depth



0.72 cm


Product Height



0.17 cm


Product Width



0.42 cm


Recycling data



Post-consumer recycled plastic



85 %


Sustainability



Doesn't contain



PVC/BFR


Sustainability certificates



WEEE, REACH


Vendor information



Brand Name


AOC


Weight & dimensions



Depth (with stand)



20.296 cm


Depth (without stand)



4.648 cm


Height (with stand)



53.35 cm


Height (without stand)



35.44 cm


Weight (with stand)



5.5 kg


Weight (without stand)



3.71 kg


Width (with stand)



53.523 cm


Width (without stand)



53.35 cm
