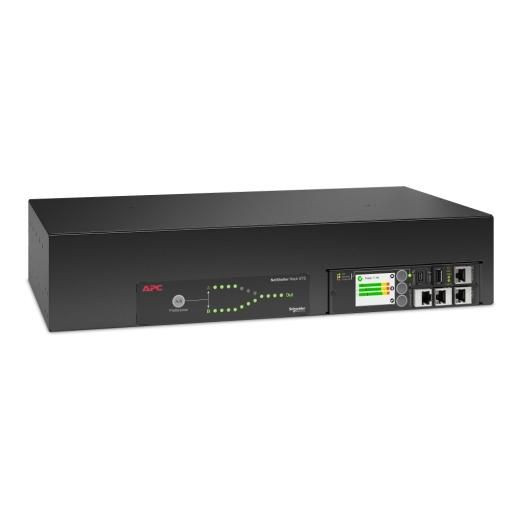

APC AP4453A APC AP4453A Automatic AP4453A

Rack-Mountable
Occupys only 2U of valuable rack space. Puts the power where it is needed most - in the rack near the equipment.

Information Displays
Indicates the status of the AC sources powering the units, as well as indicates which source is set as the primary source and which source is currently supplying power to the load. This provides a visual depiction of the power flow from the input to the load. This allows the user to quickly glance at the power flow and status of the input sources without connecting to the unit.

Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.

Transfer time <10ms
Industry leading transfer time to ensure seamless ride through in the event of a primary power source failure.

Dual Input Power Sources
Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternative power source.

10 kAIC Overcurrent Protection
Provides protection in the event of a significant overcurrent event.

Color LCD display
Provides more robust and intuitive local control and manageability.

Network Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web and SNMP. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time.

Design



Certification



EN 55022 class A, FCC part 15 class A


Display



LCD


Form factor



Rackmount


Product colour



Black


Rack capacity



2U


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-5 - 45 �C


Storage temperature (T-T)



-25 - 65 �C


Package dimensions



Gross Weight (Package, kg)



0.26 kg


Ports & interfaces



AC outlet types



NEMA L5-20R


AC outlets quantity



16 AC outlet(s)


Power



AC input frequency



50 - 60 Hz


Input current



30 A


Input operation voltage (max)



132 V


Input operation voltage (min)



108 V


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



23.6 cm


Product Height



8.8 cm


Product Width



43.2 cm


Vendor information



Brand Name


APC


Warranty



1 Year(s)
