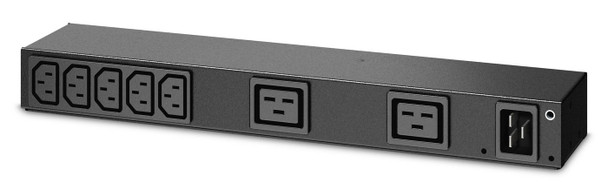

APC AP6120A Rack PDU Basic AP6120A

The APC by Schneider Electric Basic Rack Power Distribution Unit (PDU) distributes power to devices in the rack.

Design



Mounting



Horizontal/Vertical


PDU types



Basic


Product colour



Black


Rack capacity



0U/1U


Type



Single-phase


Features



Certification



UL/C-UL, VDE, CE


RoHS compliance



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 50 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-15 - 60 �C


Package dimensions



Depth (package,cm)



44 cm


Gross Weight (Package, kg)



1.86 kg


Height (package,cm)



9 cm


Width (package,cm)



22 cm


Ports & interfaces



AC outlet types



C13 coupler, C19 coupler


AC outlets quantity



7 AC outlet(s)


Power plug



C20 coupler


Power



AC input frequency



50 - 60 Hz


Load capacity



3680 VA


Maximum current



20 A


Maximum input current per phase



16 A


Maximum power



3680 Watt


Nominal input voltage



100-240 V


Nominal output voltage



100-240 V


Product dimensions



Net Weight (Product, kg)



1 kg


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


APC


Warranty



1 Year(s)


Weight & dimensions



Dimensions (WxDxH)



4.36 x 9.29 x 38.81 mm
