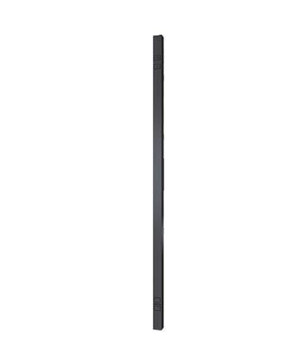

APC AP8858NA3 Rack PDU 2G. Metered. ZeroU. AP8858NA3

Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

Local Current Monitoring Display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.

Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)

Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.

Integrates with InfraStruXure Central
An IT-ready, scalable monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network

Flash Upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)

Design



Product colour



Black


Features



Cable length



3 m


Certification



CSA C22.2 No. 60950,IEC 60950,METI Denan,UL 60950-1,VDE


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



5 - 45 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-25 - 65 �C


Package dimensions



Depth (package,cm)



113 cm


Gross Weight (Package, kg)



4.92 kg


Height (package,cm)



11 cm


Width (package,cm)



17 cm


Packaging data



Package dimensions (WxDxH)



162 x 107 x 1124 mm


Ports & interfaces



Input connection type



NEMA L6-20P


Output connections



18x IEC 320 C13 2x IEC 320 C19


Power



AC input frequency



50 - 60 Hz


Maximum input current per phase



20 A


Maximum total current draw per phase



20 A


Nominal output voltage



208 V


Product dimensions



Net Weight (Product, kg)



2.93 kg


Vendor information



Brand Name


APC


Warranty



1 Year(s)


Weight & dimensions



Dimensions (WxDxH)



56 x 44 x 902 mm
