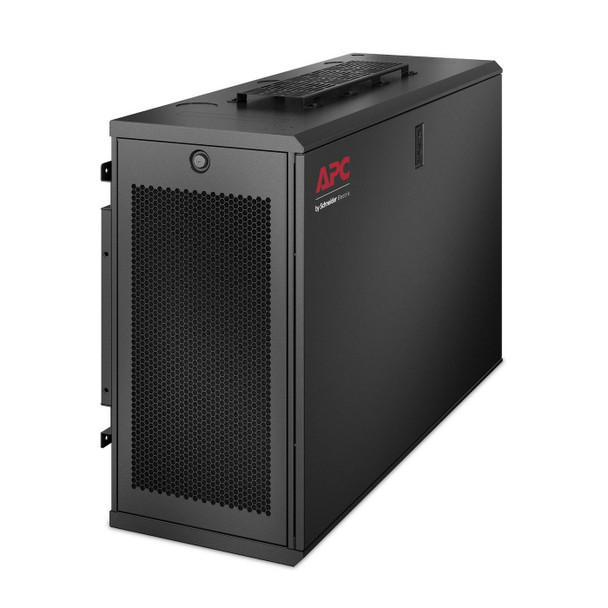

APC AR106V Rack Cabinet 6U Wall Mounted AR106V

NetShelter WX 6U Low-Profile Wall Mount Enclosure 120V Fans
APC By Schneider Electric 6U Wall Mount is an innovative new way to deploy server and networking equipment at the Edge. The unique low-profile design enables large depth devices to be wall mounted in a compact and less intrusive form factor than traditional wall mount cabinets. It can ship pre-integrated with APC Smart UPS battery backup, NetBotz Physical and Environmental Security, and EcoStruxure IT, our cloud-based remote monitoring platform to stay connected at the Edge!

Air filtration and ventilation
Replaceable MERV 5/G3 dust filter and integrated fans allow equipment to be placed in dusty and light industrial environments

Enhanced physical security
Protect against physical and environmental threats with camera monitoring, keylock doors, intrusion detection, temperature/humidity monitoring, leak detection, and more

High weight load capacity
Supports equipment up to 250lbs (113kg) of total load

Integrator Ready
Shock Packaging allows all equipment to be pre-integrated into the enclosure before it arrives on-site, speeding up and standardizing deployments

Low-Profile Design
Extends less than 13� (330mm) off of the wall while supporting equipment up to 30� (762mm) deep, including 1 and 2U hyperconverged servers, UPS, and network switches

Wall mount or floor standing
The detachable wall bracket and optional casters allow the enclosure to be mounted on the wall or floor, depending on the site requirements

Features



Key lock



Yes


Maximum weight capacity



113 kg


Product colour



Black


Rack capacity



6U


Type



Wall mounted rack


Package dimensions



Depth (package,cm)



73.4 cm


Gross Weight (Package, kg)



0.13 kg


Height (package,cm)



42.7 cm


Width (package,cm)



106.4 cm


Power



AC input frequency



60 Hz


AC input voltage



100 - 120 V


Product dimensions



Net Weight (Product, kg)



0.1 kg


Product Depth



96.8 cm


Product Height



64.8 cm


Product Width



35.3 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


APC


Warranty



1 Year(s)


Weight & dimensions



Mounting depth (max)



76.2 cm


Mounting depth (min)



76.2 cm


Size (imperial)



19 "
