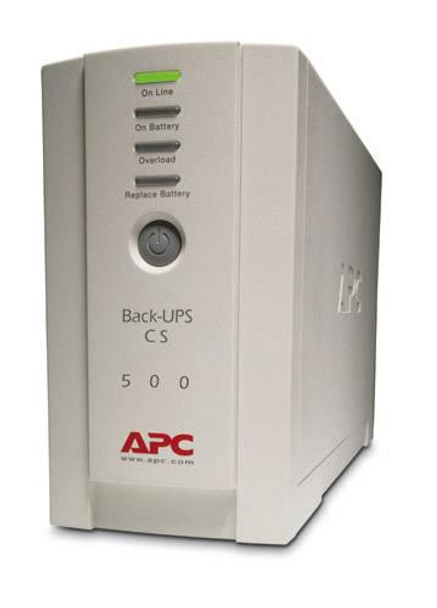

APC BK500EI Back UPS/500VA Offline BK500EI

The re-invention of the most relied upon desktop UPS in history: the Back-UPS!
The Back-UPS CS provides professional-grade power protection for office and home office systems. Battery powered & surge protected power outlets, built-in phone/fax/modem line (DSL compatible) protection, safe system shutdown software with sophisticated power management features and pro-active audio-visual status indicators ensure office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. Serial or USB connectivity gives users more flexibility making installation quicker and easier. Easy access to a hot-swappable, user-replaceable battery also makes servicing the Back-UPS CS hassle-free. These features along with its classic styling make the Back-UPS CS a perfect choice for protecting your important office and home office systems.

Key features:- Audible alarms
- Automatic restart of loads after UPS shutdown
- Automatic self-test
- Battery replacement without tools
- Battery-protected and surge-only outlets
- Dataline Surge Protection
- Hot-swappable batteries
- LED status indicators
- Power conditioning
- Resettable circuit breakers
- Safety-agency approved
- Transformer-block spaced outlets
- User-replaceable batteries

Battery



Automatic battery test



Yes


Battery capacity



7 Ah


Battery capacity



83 VAh


Battery life (max)



6 year(s)


Battery recharge time



8 Hour


Battery technology



Sealed Lead Acid (VRLA)


Battery voltage



12 V


Typical backup time at full load



3.8 min


Typical backup time at half load



13.8 min


Design



Cable length



1.83 m


Certification



C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE, REACH


Energy Star certified



Yes


Form factor



Tower


LED indicators



Battery replacement


Product colour



Beige


RoHS compliance



Yes


Features



Audible alarm modes



Low battery alarm, Overload alarm


Audible alarm(s)



Yes


Efficiency



99 %


Hold time (max)



10 Millisecond


Hold time (min)



6 Millisecond


Input frequency



50/60 Hz


Input operation voltage (max)



300 V


Input operation voltage (min)



160 V


Maximum current



7 A


Noise level



40 dB


Output frequency regulation



47 - 63 Hz


Output power



300 Watt


Output power capacity



0.5 kVA


Power protection features



Overload


Surge energy rating



310 J


Surge protection



Yes


Surge protection features



Digital Subscriber Line (DSL), Fax, Modem, Telephone


UPS topology



Standby (Offline)


Waveform



Sine


Logistics data



Harmonized System (HS) code



85078000


Products per master (outer) case



1 pc(s)


Products per pallet



48 pc(s)


Operational conditions



Non-operating altitude



0 - 15000 m


Operating altitude



0 - 3000 m


Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



0 - 95 %


Storage temperature (T-T)



-15 - 45 �C


Other features



Filtering



Yes


Nominal input voltage



230 V


Nominal output voltage



230 V


Packaging content



Detachable 1.2m IEC power cord Detachable 1.8 m IEC power cord


Package dimensions



Depth (package,cm)



41 cm


Gross Weight (Package, kg)



8 kg


Height (package,cm)



23 cm


Width (package,cm)



19 cm


Packaging data



Bundled software



PowerChute Personal Edition


Cables included



Phone (RJ-11), USB cable


Quick installation guide



Yes


Software CD



Yes


Warranty card



Yes


Ports & interfaces



AC outlet types



C13 coupler


AC outlets quantity



4 AC outlet(s)


Number of output IEC jumpers



2


Power plug



C14 coupler


USB port



Yes


Product dimensions



Net Weight (Product, kg)



6.402 kg


Product Depth



28.4 cm


Product Height



16.5 cm


Product Width



9.1 cm


Technical details



Harmonized System (HS) code



85078000


Sustainability certificates



ENERGY STAR, Green Premium, RoHS


Vendor information



Brand Name


APC


Homepage



http://www.apc.com/tools/ups_selector/


Warranty



2 Year(s)
