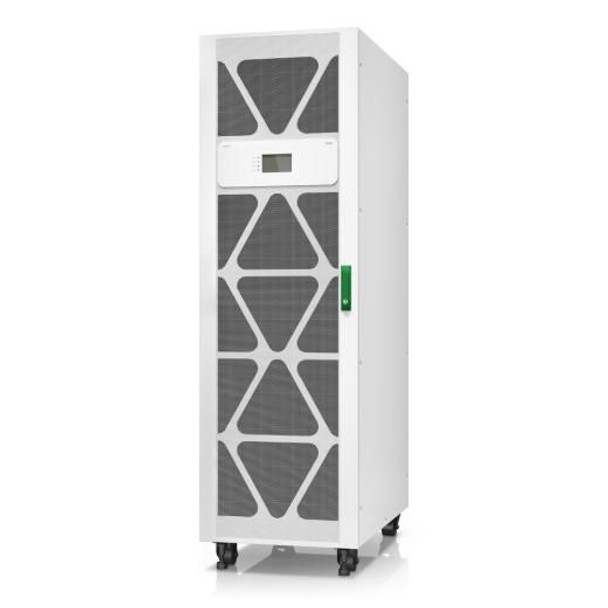

APC E3MUPS80KHB1S Uninterruptible Power Supply E3MUPS80KHB1S

Easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 80 kVA 3 phase UPS with internal batteries providing a runtime of 9.3 minutes. With advanced product features, robust electrical specifications and compact design, the Easy UPS 3M UPS makes your business continuity easy. Ideal for small and medium data centers and other business critical applications, this UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management. For battery runtime details, see the runtime charts published under the Documents tab. Includes 5x8 start-up service.

Optional SNMP Card
When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT.

Wide Input Voltage Window
Saves your battery power for when you really need it - during power cuts!

Replaceable dust filters
protect the UPS in harsh environments.

Parallel capability
Multiple units can be placed in parallel to meet power capacity and redundancy requirements

Easy Loop Test
Verifies UPS performance before you connect your load, without the need for a load bank.

Straightforward installation
Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.

Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.

Easy to install fast
Quickly roll the compact and lightweight UPS into position.

ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

Battery



Battery technology



Sealed Lead Acid (VRLA)


Battery voltage



240 V


Charging current



222 A


Typical backup time at full load



9.3 min


Design



Certification



CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE


Display type



LCD


International Protection (IP) code



IP20


Product colour



White


Features



Audible alarm(s)



Yes


ECO mode



Yes


Input current Total Harmonic Distortion (THD)



3 %


Input frequency



40/70 Hz


Input operation voltage (max)



477 V


Input operation voltage (min)



342 V


Input power factor



0.99


Maximum current



146 A


Noise level



65 dB


Output frequency



50/60 Hz


Output operation voltage (max)



415 V


Output operation voltage (min)



380 V


Output power



80000 Watt


Output power capacity



80 kVA


Output voltage regulation



3 %


Output voltage Total Harmonic Distortion (THD)



5 %


UPS topology



Double-conversion (Online)


Waveform



Sine


Logistics data



Harmonized System (HS) code



85078000


Operational conditions



Non-operating altitude



0 - 15000 m


Operating altitude



0 - 1000 m


Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-15 - 40 �C


Package dimensions



Depth (package,cm)



112.5 cm


Gross Weight (Package, kg)



5.2 kg


Height (package,cm)



210.2 cm


Width (package,cm)



75 cm


Packaging data



Quick installation guide



Yes


Product dimensions



Net Weight (Product, kg)



4 kg


Product Depth



100 cm


Product Height



197 cm


Product Width



60 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


APC


Warranty



1 Year(s)
