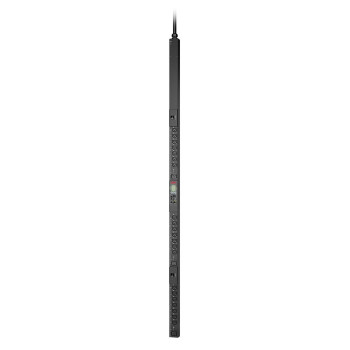

APC EPDU1116M Power Distribution Unit Pdu EPDU1116M

Easy Metered Rack Power Distribution Units (PDU) provide real-time remote monitoring and power management of connected loads in server rack and network rack solutions. Going beyond the average power strip, Easy PDU offers User-defined alarms to warn of potential circuit overloads before critical IT failures occur.

Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

Toolless Rack Mounting Capabilities
Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.

Vertical Mounting Capabilities
Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures.

Availability

Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.

Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

Local Current Monitoring Display
The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)

Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.

Flash Upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released.

Agility

Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Design



Display



LCD


Housing material



Aluminium


Mounting



Vertical


On/off switch



No


PDU types



Metered


Product colour



Black


Rack capacity



0U


Type



Single-phase


Features



Cable length



3 m


Certification



CE, TUV


Daisy chain



No


LED indicators



Yes


Management features



Firmware upgradeable



Yes


Monitoring



Current, Power, Voltage


Operational conditions



Non-operating altitude



0 - 15000 m


Operating altitude



0 - 3000 m


Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-5 - 45 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-25 - 65 �C


Package dimensions



Depth (package,cm)



11 cm


Gross Weight (Package, kg)



3.25 kg


Height (package,cm)



132 cm


Width (package,cm)



16 cm


Packaging content



Manual



Yes


Ports & interfaces



AC outlet types



C13 coupler, C19 coupler


AC outlets quantity



21 AC outlet(s)


Power plug



IEC 60309


Power



AC input frequency



50 - 60 Hz


Load capacity



3680 VA


Maximum current



16 A


Maximum input current per phase



16 A


Maximum power



3680 Watt


Nominal input voltage



200/208/230 V


Nominal output voltage



230 V


Product dimensions



Net Weight (Product, kg)



2.5 kg


Product Depth



4.4 cm


Product Height



90.2 cm


Product Width



6.2 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


APC


Warranty



1 Year(s)
