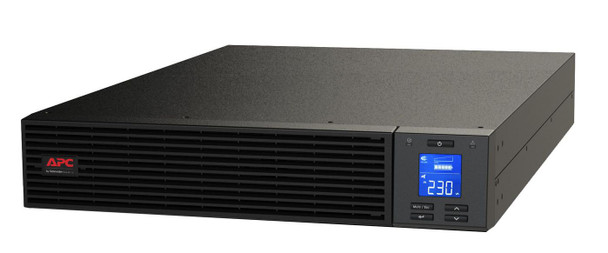

APC SRV2KRI Uninterruptible Power Supply SRV2KRI

Automatic internal bypass

Supplies utility power to the connected loads in the event of a UPS power overload or fault.

Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.

ECO Mode

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.

Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

LCD display

Alpha-Numeric Display which displays system parameters and alarms.

Serial connectivity

Provides management of the UPS via a serial port.

USB connectivity

Provides management of the UPS via a USB port (not available on all models).

Features

Management Software

Allows you to easily monitor your utility power and manage your UPS.

ECO Mode

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.

Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.

High efficiency

High efficiency rates that remain stable even at lower operating power levels.

SmartSlot

Customize UPS capabilities with management cards.

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

Double conversion on-line topology

Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.

Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

Wide input voltage range

Designed for harsh electrical environments to save battery life.

Serviceability

Disconnected battery notification

Warns when a battery is not available to provide backup power.

Audible alarms

Provides notification of changing utility power and UPS power conditions.

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Predicitive failure notification

Provides early-warning fault analysis ensuring proactive component replacement.

Manageability

Serial connectivity

Provides management of the UPS via a serial port.

SmartSlot

Customize UPS capabilities with management cards.

LCD graphics display

Text and mimic diagrams that display modes of operation, system parameters and alarms.

Network manageable

Provides remote power management of the UPS over the network.

LED Indicators

Provide easy-to-read status of the unit and utility power conditions.

Availability

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Battery



Automatic battery test



Yes


Battery recharge time



4 Hour


Battery technology



Sealed Lead Acid (VRLA)


Design



Certification



CE, IEC 62040-1-1, IEC 62040-1-2 REACH


Display type



LCD


Form factor



Rackmount


LED indicators



Y, Yes


Product colour



Black


Rack capacity



2U


Features



Audible alarm modes



Alarm when on battery, Fault, Low battery alarm, Overload alarm


Audible alarm(s)



Yes


Auto-restart



Yes


Crest factor



3:1


ECO mode



Yes


Efficiency



88 %


Emergency Power Off (EPO)



No


Input frequency



40/70 Hz


Input operation voltage (max)



280 V


Input operation voltage (min)



160 V


Input power factor



0.95


Maintenance-free



Yes


Noise level



50 dB


Number of input phases



1


Number of output phases



1


Output frequency



50/60 Hz


Output operation voltage (max)



240 V


Output operation voltage (min)



220 V


Output power



1600 Watt


Output power capacity



2 kVA


Output power factor



0.8


Output voltage regulation



1 %


Output voltage Total Harmonic Distortion (THD)



3 %


Socket circuit breaker



Yes


Surge energy rating



600 J


UPS topology



Double-conversion (Online)


Waveform



Sine


Logistics data



Harmonized System (HS) code



85078000


Operational conditions



Operating altitude



0 - 3000 m


Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



0 - 40 °C


Storage relative humidity (H-H)



0 - 95 %


Storage temperature (T-T)



-20 - 50 °C


Other features



Nominal input voltage



230 V


Nominal output voltage



230 V


Package dimensions



Depth (package,cm)



59.9 cm


Gross Weight (Package, kg)



23.66 kg


Height (package,cm)



14.2 cm


Width (package,cm)



55.1 cm


Packaging data



Cables included



USB cable


Manual



Yes


Software CD



Yes


Ports & interfaces



AC outlet types



C13 coupler


AC outlets quantity



4 AC outlet(s)


Serial interface



Yes


Serial ports quantity



1


SmartSlot



Yes


USB port



Yes


USB port type



USB Type-B


Product dimensions



Net Weight (Product, kg)



18.2 kg


Product Depth



46.2 cm


Product Height



8.6 cm


Product Width



43.7 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


APC


Warranty



1 Year(s)
