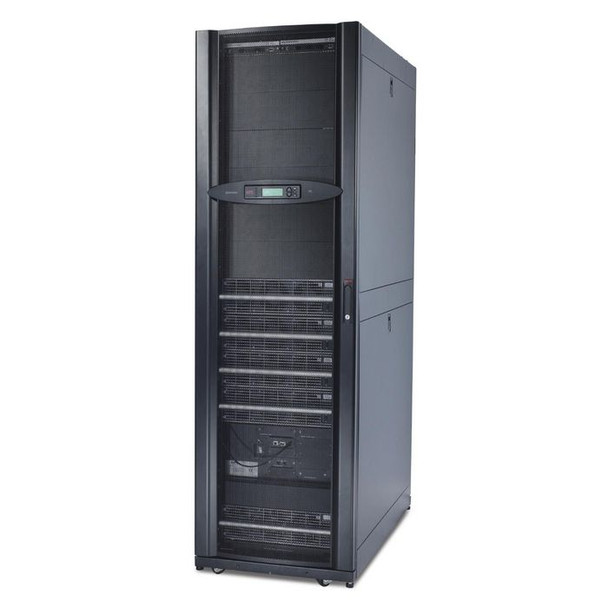

APC SY64K96H-NB Uninterruptible Power Supply SY64K96H-NB

SY64K96H-NB Features

- Symmetra PX 64kW Scalable to 96kW, without Bypass, Distribution, or Batteries, 400V
- A high-efficiency, modular 3-phase UPS that offers internal redundancy for your data center requirements. With scalable power, this UPS grows with your data center up to 160kW/kVA. Pair with the Classic Battery Cabinet and the Wall-Mount or 300mm Maintenance Bypass Panel to complete your power protection solution. Please click here for Classic Battery Cabinet runtime information. Suitable for small to medium data centers or individual zones of large data centers.
- Includes: Network Management Card, Start-Up Service, User Manual

Design



Certification



EN 50091-1, EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, ISO 14001, ISO 9001, VFI-SS-111


Display type



LCD


Form factor



Tower


International Protection (IP) code



IP20


LED indicators



Y, Yes


Product colour



Black


Rack capacity



42U


Features



Audible alarm modes



Alarm when on battery, Low battery alarm


Audible alarm(s)



Yes


Efficiency



95 %


Emergency Power Off (EPO)



Yes


Input current Total Harmonic Distortion (THD)



5 %


Input frequency



40/70 Hz


Input operation voltage (max)



477 V


Input operation voltage (min)



340 V


Input power factor



0.99


Maximum current



160 A


Noise level



63 dB


Number of output phases



3


Output frequency



50/60 Hz


Output frequency regulation



+/- 3 Hz


Output operation voltage (max)



415 V


Output operation voltage (min)



230 V


Output power



160000 Watt


Output power capacity



160 kVA


Output voltage Total Harmonic Distortion (THD)



5 %


Power protection features



Overload, Short circuit


UPS topology



Double-conversion (Online)


Waveform



Sine


Operational conditions



Non-operating altitude



0 - 15000 m


Operating altitude



0 - 1000 m


Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



0 - 95 %


Storage temperature (T-T)



-15 - 40 �C


Package dimensions



Depth (package,cm)



121 cm


Gross Weight (Package, kg)



0.13 kg


Height (package,cm)



214 cm


Width (package,cm)



84.8 cm


Packaging data



Manual



Yes


Ports & interfaces



AC outlet types



Hard Wire 5-wire (3PH + N + G)


RS-232 ports



1


SmartSlot



Yes


Product dimensions



Net Weight (Product, kg)



0.1 kg


Product Depth



107 cm


Product Height



199.1 cm


Product Width



60 cm


Vendor information



Brand Name


APC


Warranty



1 Year(s)
