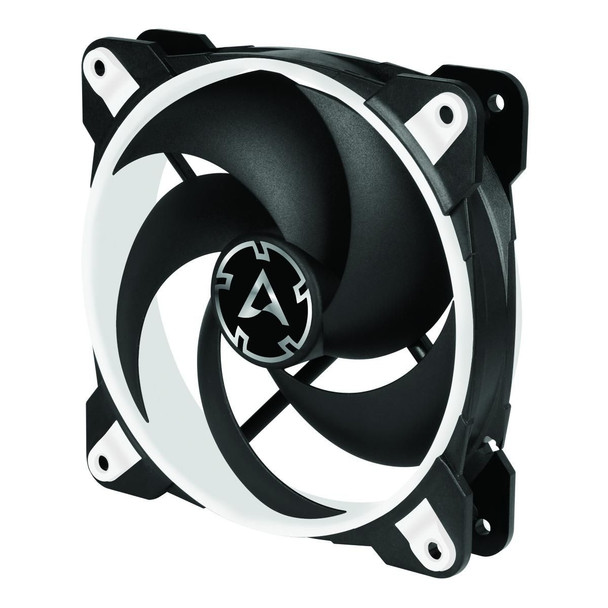

Arctic ACFAN00116A Bionix P120 White - ACFAN00116A

The BioniX P120 fan features completely redesigned fanblades and is optimised for high static pressure. Thus, the BioniX P120 is especially effective when used on heatsinks and with higher air resistance.
The wide RPM range from 200 to 2100 RPM can be regulated seamlessly and synchronously with other fans thanks to ARCTIC's PWM Sharing Technology (PST).
The newly developed motor with a low coil temperature significantly increases the life span of the fan. Therefore we have extended the warranty to 10 years.

Design



Fan connector



4-pin + 4-pin


Number of fan blades



5


Number of fans



1 fan(s)


Product colour



Black, White


Logistics data



Harmonized System (HS) code



84733080


Other features



Mounting hole pattern (W x D)



105 x 105 mm


Package dimensions



Depth (package,cm)



12.5 cm


Gross Weight (Package, kg)



0.26 kg


Height (package,cm)



3.4 cm


Width (package,cm)



13 cm


Packaging content



Number of screws



4


Package type



Box


Screws included



Yes


Performance



Airflow



114.79 m³/hr


Bearing type



Fluid Dynamic Bearing (FDB)


Compatible processor series



Not supported


Fan diameter



12 cm


Maximum airflow



67.56 cfm


Noise level



0.45 sone


Noise level (high speed)



25.5 dB


Pulse-width modulation (PWM) support



Yes


Rotational speed (max)



2100 RPM


Rotational speed (min)



200 RPM


Suitable location



Computer case


Supported processor sockets



Not supported


Type



Fan


Power



Power consumption (typical)



1.56 Watt


Rated current



0.13 A


Voltage



12 V


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



12 cm


Product Height



2.7 cm


Product Width



12 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Arctic


Warranty



1 Year(s)


Weight & dimensions



Cable length



0.4 m
