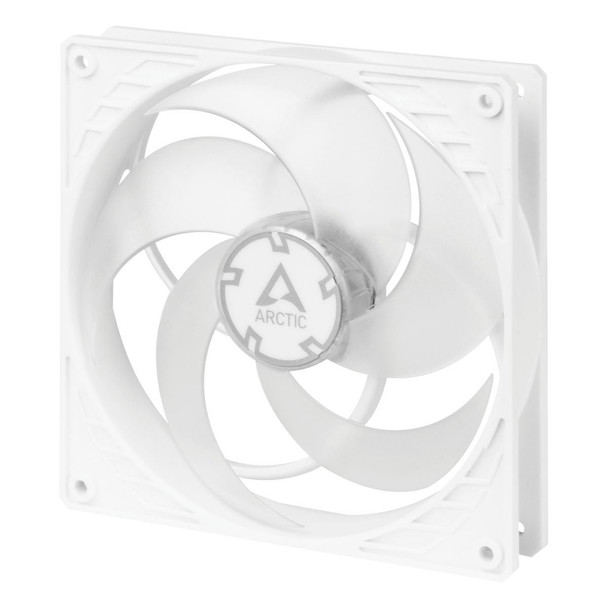

Arctic ACFAN00223A P14 Pwm Pressure-Optimised ACFAN00223A

The P14 PWM features completely redesigned fan blades and is optimised for high static pressure. Thanks to this, it is especially effective when used on heatsinks and in situations with higher air resistance.The wide RPM range from 200 to 1700 RPM can be regulated steplessly via PWM.The newly developed motor with a low coil temperature significantly increases the life span of the fan. Therefore we have extended the warranty to 10 years.

Design



Fan connector



4-pin


Number of fan blades



5


Number of fans



1 fan(s)


Product colour



Transparent, White


Logistics data



Harmonized System (HS) code



84733080


Package dimensions



Depth (package,cm)



14.3 cm


Gross Weight (Package, kg)



0.25 kg


Height (package,cm)



2.9 cm


Width (package,cm)



14.3 cm


Packaging content



Number of screws



4


Package type



Box


Screws included



Yes


Performance



Airflow



123.76 m�/hr


Bearing type



Fluid Dynamic Bearing (FDB)


Compatible processor series



Not supported


Fan diameter



14 cm


Maximum air pressure



2.4 mmH2O


Maximum airflow



72.8 cfm


Noise level



0.3 sone


Pulse-width modulation (PWM) support



Yes


Quantity per pack



1 pc(s)


Rotational speed (max)



1700 RPM


Rotational speed (min)



200 RPM


Suitable location



Computer case


Supported processor sockets



Not supported


Type



Fan


Power



Power consumption (typical)



1.44 Watt


Rated current



0.12 A


Starting voltage



3.9 V


Voltage



12 V


Product dimensions



Net Weight (Product, kg)



0.19 kg


Product Depth



14 cm


Product Height



2.7 cm


Product Width



14 cm


Vendor information



Brand Name


Arctic


Warranty



1 Year(s)


Weight & dimensions



Cable length



0.4 m
