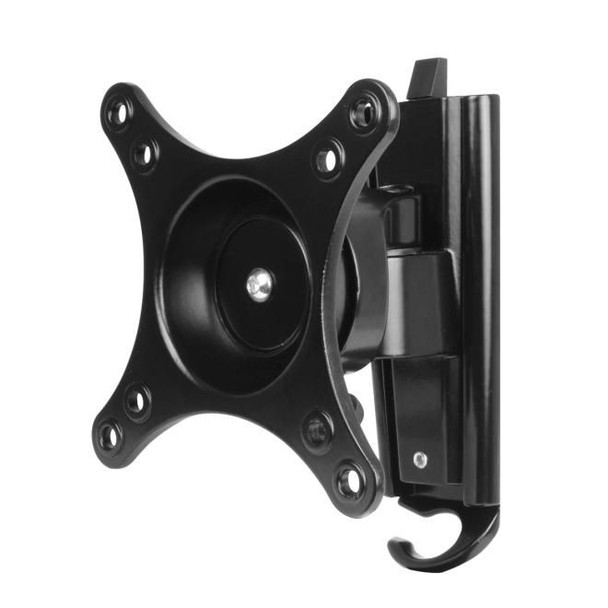

Arctic ORAEQMA005GB W1A - Monitor Wall Mount ORAEQMA005GB

The ARCTIC W1A is a single pivot 3 axis articulation bracket mount, offers smooth adjustable screen angle with 360� rotation, 60� swivel and �15�tilt. The ball joint design gives the flexibility to perfectly position your monitor to reduce eye, neck, shoulder and back strain. It mounts closely to the wall and maximise your work area. Compatible with monitors from 13" to 30", the two-piece direct mounting system allows quick installation and support up to 20 kg in weight.

Maximise Your Workspace
The monitor close-wall mount system takes the least space on your desk and thus maximises your work area. It is also an ideal solution for touch screen applications.

Smooth Finger Adjustable Screen
The ARCTIC W1A wall-mount is integrated with a smooth ball-joint design, which delivers the most flexibly adjustable screen angle with 360� rotation, 60� left-right swivel and 15� afterward and backward tilt.

Perfect positioning to reduce eyes, neck, shoulder and back strain
The ball joint design allows easy finger adjustment, giving the flexibility to adjust your monitor to a perfect position, hence prevent undue eye, neck, shoulder and back strain with optimal viewing position.

Sturdy and Stable
The ARCTIC W1A ensures a secure mounting system to your monitor. Equipped with security lock and two screw-lock system to prevent slipping and enhance stability.

Quick-Fix Two-piece Direct Mount
The 2 �pieces direct mount system is designed for quick and easy installation. Simply Screw the mounting on your wall and monitor, assemble by slide it in the mounting rail.

Cable Management
The simple design cable management hook keeps your cable neatly together behind your monitor.

VESA 75 / 100
With the VESA 75 x 75 / 100 x 100 compliant mounting brackets, it is designed for monitors from 13" to 30" with up to 20kg of weight. Compatible with all popular desktop monitor such as LG, Viewsonic, HP, NEC, AOC and Dell.

Design



Product colour



Black


Ergonomics



Angle of rotation



360 �


Cable management



Yes


Swivel angle



60 �


Tilt angle range



-15 - 15 �


Logistics data



Harmonized System (HS) code



85299097


Mounting



Distance to the wall (max)



10 cm


Maximum screen size



43 "


Maximum VESA mount



100 x 100 mm


Maximum weight capacity



20 kg


Minimum screen size



13 "


Minimum VESA mount



75 x 75 mm


Mounting type



Wall


Number of displays supported



1


Panel mounting interface



75 x 75, 75 x 100, 100 x 100, 100 x 75


Package dimensions



Depth (package,cm)



19 cm


Gross Weight (Package, kg)



2.6 kg


Height (package,cm)



9.1 cm


Width (package,cm)



13 cm


Packaging content



Mounting kit



Yes


Screws included



Yes


Product dimensions



Net Weight (Product, kg)



2 kg


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Arctic


Warranty



1 Year(s)
