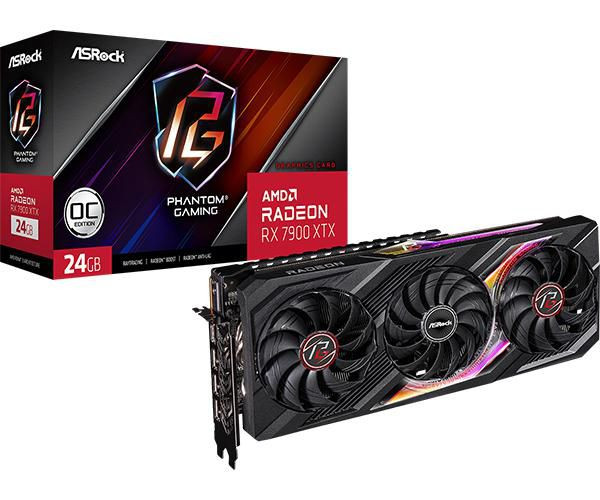

Asrock 90-GA3YZZ-00UANF Graphics Card Amd Radeon Rx 90-GA3YZZ-00UANF

Reverse Spin
The center fan spins reversely to lower turbulence and enhance air dispersion through the heatsink.

Phantom Gaming 3X Cooling System
For Cool And Silent.
Crafted for the best balance between the thermal efficiency and silence by all the details.

Striped Ring Fan
Designed For Enhanced Airflow
ASRock�s all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.

Air Deflecting Fin
Guide Airflow To Go Through Regularly & Quickly.
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.

Ultra-Fit Heatpipe
Consolidated To Maximize The Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

Nickel-Plated Copper Base
Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.

High-Density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

Nano Thermal Paste
Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.

Premium Thermal Pad
Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.

Precise Screw Torque
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.

0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

Polychrome SYNC
Create Your Own Unique Colorful Light Effects.
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.

LED On/Off Switch
On Or Off? Switch As You Want.
You can switch not only the built-in ARGB LEDs but also the ARGB LEDs equipping with the connected strips/devices at once.

ARGB Pin-Header
More ARGB, More Fancy.
With the ARGB pin-header, it can connect ARGB strips/devices to make the lighting effects more rich and vivid.

Reinforced Metal Frame
Enhances the structure to prevent the PCB from being bent.

Stylish Metal Backplate
Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.

ASRock Tweak 2.0
Pro And Easy-To-Use Tuning Utility.
Provides the smart fan speed control and instant performance tweaking.

8K Resolution Support
Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.

PCI� Express 4.0 Support
This graphics card features PCI� Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI� Express 3.0. Get ready for the next generation of PC gaming.

BREAKTHROUGH PERFORMANCE
AMD Radeon� RX 7000 Series graphics cards set a new standard for ultra-enthusiast class gaming performance. Featuring advanced AMD RDNA� 3 compute units, blazing fast clock speeds, and chiplet technology to enable fluid, high-refresh rate gaming experiences. Breakthrough new levels of performance with up to 24GB of GDDR6 memory and 2nd generation AMD Infinity Cache� to deliver an incredible experience at 4K and beyond.

BREATHTAKING VISUALS
Discover new levels of fidelity and ultra-fast gameplay with High-Performance Rendering, a combination of compute-based AMD FideltyFX� features and upscaling technologies, to deliver world-class visuals with remarkable performance. Further immerse yourself with the AMD Radiance Display� Engine and DisplayPort� 2.1 to experience up to 68 billion colors at up to 8K 165Hz.

BETTER TOGETHER
Combine AMD Radeon� RX 7000 Series graphics cards and AMD Ryzen� processors to activate AMD smart technologies3. You can unleash outstanding performance to give you an edge in the game. Advance your AMD Radeon� RX 7000 Series GPU with the AMD Software: Adrenalin Edition� application, featuring bulletproof drivers, for the best PC gaming experiences.

UPSIZE PERFORMANCE.
MAXIMIZE FIDELITY
AMD FidelityFX� Super Resolution technology1 takes upscaling technology to the next level. Providing incredible image quality while boosting framerates in supported games.
AMD Radeon� Super Resolution (RSR)2 leverages FSR technology on the driver level, giving you upscaled performance benefits across thousands of games.

Design



Cooling type



Active


Illumination



Yes


Number of fans



3 fan(s)


Number of slots



2.8


Memory



Data transfer rate



20 Gbit/s


Discrete graphics card memory



24 GB


Graphics card memory type



GDDR6


Memory bus



384 bit


Package dimensions



Gross Weight (Package, kg)



1.17 kg


Performance



DirectX version



12 Ultimate


Dual Link DVI



No


HDCP



Yes


OpenGL version



4.6


Shader model version



No


TV tuner integrated



No


Ports & interfaces



DisplayPort version



2.1


DisplayPorts quantity



3


HDMI ports quantity



1


HDMI version



2.1


Interface type



PCI Express x16 4.0


Power



Minimum system power supply



1000 Watt


Supplementary power connectors



3x 8-pin


Processor



CUDA



No


Graphics processor



Radeon RX 7900 XTX


Graphics processor family



AMD


Maximum displays per videocard



4


Maximum resolution



7680 x 4320 Pixels


Processor boost clock speed



2615 MHz


Processor boost clock speed (Gaming mode)



2455 MHz


Stream processors



6144


Product dimensions



Net Weight (Product, kg)



0.9 kg


Product Depth



14 cm


Product Height



5.76 cm


Product Width



33 cm


System requirements



Windows operating systems supported



Windows 11


Vendor information



Brand Name


Asrock


Warranty



1 Year(s)
