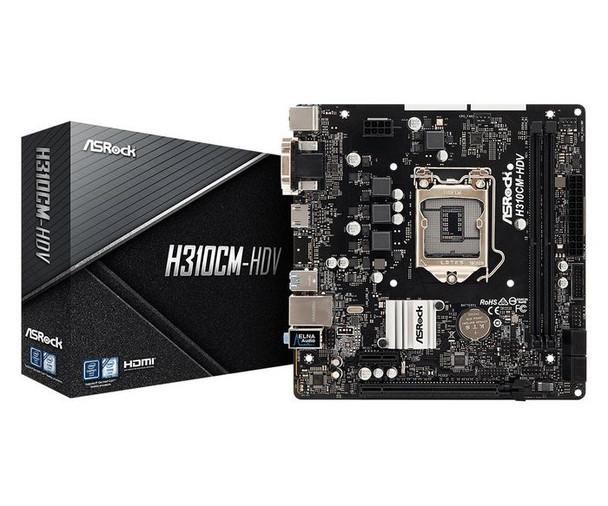

Asrock 90-MXB8J0-A0UAYZ H310CM-HDV Intel� H310 LGA 90-MXB8J0-A0UAYZ

HEVC 10-bit Decoding/Encoding
Supports HEVC 10-bit Decoding/Encoding to provide substantially improved video quality and higher bit depth video experience.

4K x 2K
Composed by a minimum of 3840 x 2160 pixels, which is twice the horizontal and vertical resolution of the 1080p format.

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.

Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 1.5A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

Solid Capacitor Design
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.

A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard�s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

BIOS



ACPI version



6.0


BIOS memory size



128 Mbit


BIOS type



UEFI AMI


System Management BIOS (SMBIOS) version



2.7


Expansion slots



PCI Express x1 (Gen 2.x) slots



1


PCI Express x16 (Gen 3.x) slots



1


Features



Audio chip



Realtek ALC887


Audio output channels



7.1 channels


Certification



- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)


Component for



PC


Harmonized System (HS) code



84733020


Motherboard chipset



Intel� H310


Motherboard chipset family



Intel


Motherboard form factor



micro ATX


Windows operating systems supported



Windows 10 x64


Graphics



DirectX version



12.0


Graphics card family



Intel


HDCP



Yes


Maximum resolution



4096 x 2160 Pixels


Number of displays supported



2


Parallel processing technology support



Not supported


Internal I/O



ATX Power connector (24-pin)



Yes


Chassis intrusion connector



Yes


CPU fan connector



Yes


Front panel audio connector



Yes


Number of chassis fan connectors



1


Number of SATA III connectors



4


TPM connector



Yes


USB 2.0 connectors



1


USB 3.2 Gen 1 (3.1 Gen 1) connectors



1


Memory



Maximum internal memory



32 GB


Memory channels



Dual-channel


Memory slots type



DIMM


Non-ECC



Yes


Number of memory slots



2


Supported memory clock speeds



2133, 2400, 2666


Supported memory types



DDR4-SDRAM


Unbuffered memory



Yes


Network



Ethernet interface type



Gigabit Ethernet


Ethernet LAN



Yes


LAN controller



Realtek RTL8111H


Wake-on-LAN ready



Yes


Wi-Fi



No


Other features



Quick installation guide



Yes


Utilities included



Yes


Package dimensions



Depth (package,cm)



18.8 cm


Gross Weight (Package, kg)



0.8 kg


Width (package,cm)



19.1 cm


Packaging content



Bundled software



- ASRock A-Tuning - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash


Cables included



SATA


Drivers included



Yes


Processor



Compatible processor series



Intel� Celeron�, Intel� Core� i3, Intel� Core� i5, Intel� Core� i7, Intel� Core� i9, Intel� Pentium�


Processor manufacturer



Intel


Processor socket



LGA 1151 (Socket H4)


Product dimensions



Net Weight (Product, kg)



0.671 kg


Product Depth



18.8 cm


Product Width



19.1 cm


Rear panel I/O ports



DVI-D ports quantity



1


Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



1


Headphone outputs



1


Microphone in



Yes


PS/2 ports quantity



1


USB 2.0 ports quantity



4


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


VGA (D-Sub) ports quantity



1


Storage controllers



Supported storage drive interfaces



SATA III


Supported storage drive types



HDD & SSD


Vendor information



Brand Name


Asrock


Warranty



1 Year(s)
