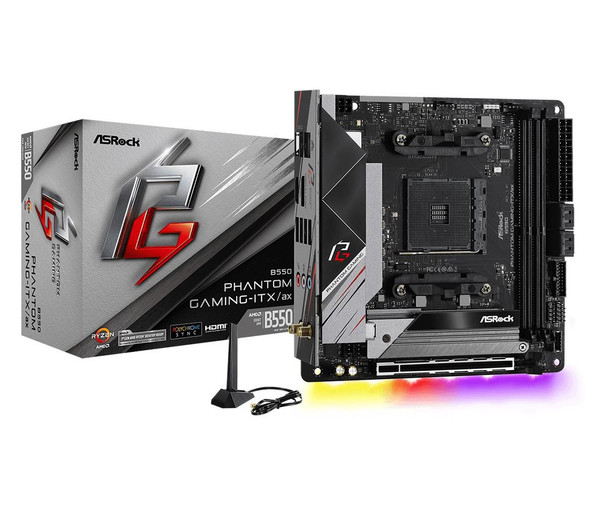

Asrock 90-MXBD40-A0UAYZ B550 Phantom Gaming-Itx/A Amd 90-MXBD40-A0UAYZ

Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It�s all about bringing a new gaming experience to gamers!

Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360� on a radar for a full immersion during the game.

8LAYER & 2OZ COPPER PCB
The 8 Layer PCB comes with 4 sets of 2 ounce copper inner layers, providing stable signal traces and power shapes and delivering lower temperature and higher energy efficiency for overclocking! Thus, it's able to support the latest DDR4 memory modules with most extreme memory performance!

RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Wi-Fi 6 802.11ax
Welcome to the new Wi-Fi standard! ASRock�s motherboard equipped with next generation Intel� Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well.

Intel� 2.5G LAN
The 2.5G Ethernet configuration were introduced to support higher bandwidth on widely deployed CAT5e and CAT6 cabling in enterprise and metro area networks. The industry's leading Intel� LAN always provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:? Extra anchor points
? Stronger latch
? Ensure signal stability
? Make sure heavy graphics cards to be well-installed.

A SOLID M.2-SOLUTION PERFORMER
Dual M.2 For SSD, Supports Type 22110 M.2
Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. Hyper M.2 socket that supports PCIe Gen4 x4 while Ultra M.2 socket is capable of running PCIe Gen3 x4 and SATA3 mode.
M.2 Armors
Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution that makes SSDs to run in a certain low temperature.

Front USB 3.2 Gen2 Type-C
Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Dual USB 3.2 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.

Post Status Checker
An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.

BIOS



BIOS type



UEFI AMI


Features



Audio chip



Realtek ALC1220


Audio output channels



7.1 channels


Component for



PC


Motherboard chipset



AMD B550


Motherboard chipset family



AMD


Motherboard form factor



mini ITX


Graphics



DirectX version



12.0


Graphics card



Radeon Vega


Graphics card family



AMD


HDCP



Yes


On-board graphics card



Yes


Internal I/O



ATX Power connector (24-pin)



Yes


CPU fan connector



Yes


EPS power connector (8-pin)



Yes


Front panel audio connector



Yes


Number of SATA III connectors



4


RGB LED pin header



Yes


USB 2.0 connectors



1


USB 3.2 Gen 1 (3.1 Gen 1) connectors



1


USB 3.2 Gen 2 (3.1 Gen 2) connectors



1


Logistics data



Harmonized System (HS) code



84733020


Memory



Maximum internal memory



64 GB


Memory slots type



DIMM


Number of memory slots



2


Supported memory clock speeds



2133, 2400, 2667, 2933, 3200, 3466, 3600, 3733, 3800, 3866, 4000, 4133, 4200, 4266, 4333, 4400, 4466, 4533, 4600, 4666, 4733, 4800, 4866, 4933, 5000


Supported memory types



DDR4-SDRAM


Network



Bluetooth



Yes


Bluetooth version



5.1


Ethernet interface type



2.5 Gigabit Ethernet


Ethernet LAN



Yes


Wake-on-LAN ready



Yes


Wi-Fi



Yes


Wi-Fi standards



802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)


Other features



Weight



465 g


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Packaging content



Drivers included



Yes


Processor



Compatible processor series



3rd Generation AMD Ryzen� 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen� 7, 3rd Generation AMD Ryzen� 9


Maximum number of SMP processors



1


Processor manufacturer



AMD


Processor socket



Socket AM4


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



17 cm


Product Height



7 cm


Product Width



17 cm


Rear panel I/O ports



DisplayPort version



1.4


DisplayPorts quantity



1


DVI-I ports quantity



1


Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



1


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



4


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity



1


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity



1


Storage controllers



Supported storage drive interfaces



M.2, SATA III


Vendor information



Brand Name


Asrock


Warranty



1 Year(s)
