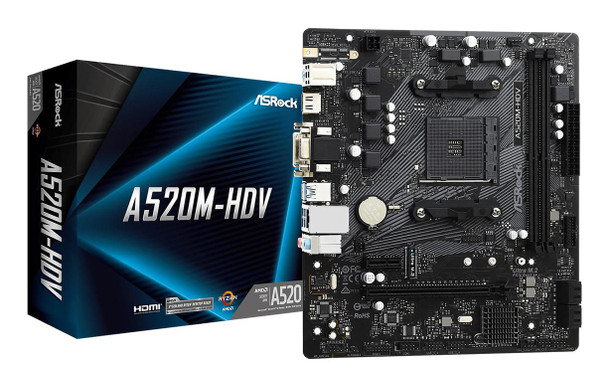

Asrock 90-MXBE50-A0UAYZ A520M-Hdv Socket Am4 Micro Atx 90-MXBE50-A0UAYZ

A520 MOTHERBOARD FOR EVERYONE
All Essentials You Need For Computing

Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.

HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.

Premium 50A Power Choke
Compared to traditional chokes, ASRock�s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard�s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

BIOS



BIOS type



UEFI AMI


Expansion slots



PCI Express x1 (Gen 3.x) slots



1


PCI Express x16 (Gen 3.x) slots



1


Features



Audio output channels



7.1 channels


Component for



PC


Motherboard chipset family



AMD


Motherboard form factor



micro ATX


Graphics



Graphics card



Radeon Vega


Graphics card family



AMD


Internal I/O



ATX Power connector (24-pin)



Yes


CPU fan connector



Yes


Front panel audio connector



Yes


Number of chassis fan connectors



2


Number of COM connectors



1


USB 2.0 connectors



2


USB 3.2 Gen 1 (3.1 Gen 1) connectors



1


Logistics data



Harmonized System (HS) code



84733020


Memory



Maximum internal memory



64 GB


Memory channels



Dual-channel


Memory slots type



DIMM


Non-ECC



Yes


Number of memory slots



2


Supported memory clock speeds



2133, 2400, 2666, 2933, 3200, 3466, 3600, 3733, 3800, 3866, 4000, 4133, 4200, 4266, 4333, 4400, 4466, 4500, 4533


Supported memory types



DDR4-SDRAM


Unbuffered memory



Yes


Network



Ethernet interface type



Gigabit Ethernet


Ethernet LAN



Yes


LAN controller



Realtek RTL8111H


Wake-on-LAN ready



Yes


Wi-Fi



No


Package dimensions



Gross Weight (Package, kg)



1.04 kg


Processor



Compatible processor series



3rd Generation AMD Ryzen� 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen� 7, 3rd Generation AMD Ryzen� 9


Processor manufacturer



AMD


Processor socket



Socket AM4


Product dimensions



Net Weight (Product, kg)



0.8 kg


Product Depth



20.1 cm


Product Width



23 cm


Rear panel I/O ports



Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



1


Microphone in



Yes


PS/2 ports quantity



1


USB 2.0 ports quantity



2


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



4


VGA (D-Sub) ports quantity



1


Storage controllers



Number of HDDs supported



5


Supported storage drive interfaces



M.2, SATA III


Vendor information



Brand Name


Asrock


Warranty



1 Year(s)
