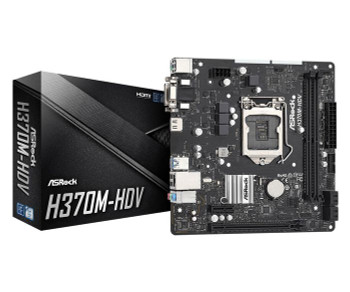

Asrock 90-MXBF40-A0UAYZ H370M-HDV Intel� H370 LGA 90-MXBF40-A0UAYZ

4 x USB3.2 Gen1
Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.2 Gen1 technology advances the data transfer rate up to 5Gb/s. ASRock provides 4 x USB 3.2 Gen1 ports onboard allows you to have a stunning data transfer experience.

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.

HEVC 10-bit Decoding/Encoding
Supports HEVC 10-bit Decoding/Encoding to provide substantially improved video quality and higher bit depth video experience.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

Triple Monitor
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

BIOS



ACPI version



6.0


BIOS memory size



128 Mbit


BIOS type



UEFI AMI


System Management BIOS (SMBIOS) version



2.7


Expansion slots



PCI Express x1 (Gen 3.x) slots



1


PCI Express x16 (Gen 3.x) slots



1


Features



Audio chip



Realtek ALC887 / Realtek ALC897


Audio output channels



7.1 channels


Component for



PC


Harmonized System (HS) code



84733020


Motherboard chipset



Intel� H370


Motherboard chipset family



Intel


Motherboard form factor



micro ATX


PC health monitoring



CPU, Fan, Temperature, Voltage


Power source type



ATX


Windows operating systems supported



Windows 10


Graphics



Number of displays supported



3


Internal I/O



ATX Power connector (24-pin)



Yes


Chassis intrusion connector



Yes


CPU fan connector



Yes


EPS power connector (8-pin)



Yes


Front panel audio connector



Yes


Number of chassis fan connectors



1


Number of SATA III connectors



4


TPM connector



Yes


USB 2.0 connectors



1


USB 3.2 Gen 1 (3.1 Gen 1) connectors



1


Memory



Maximum internal memory



64 GB


Memory channels



Dual-channel


Memory slots type



DIMM


Non-ECC



Yes


Number of memory slots



2


Supported memory clock speeds



2133, 2400, 2666


Supported memory types



DDR4-SDRAM


Unbuffered memory



Yes


Network



Ethernet interface type



Gigabit Ethernet


Ethernet LAN



Yes


LAN controller



Realtek RTL8111H


Wake-on-LAN ready



Yes


Wi-Fi



No


Package dimensions



Depth (package,cm)



18.8 cm


Gross Weight (Package, kg)



0.8 kg


Width (package,cm)



19.1 cm


Processor



Compatible processor series



Intel� Core� i3, Intel� Core� i5, Intel� Core� i7, Intel� Core� i9


Maximum number of SMP processors



1


Processor manufacturer



Intel


Processor socket



LGA 1151 (Socket H4)


Product dimensions



Net Weight (Product, kg)



0.621 kg


Product Depth



18.8 cm


Product Width



19.1 cm


Rear panel I/O ports



DVI-D ports quantity



1


Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



1


Microphone in



Yes


PS/2 ports quantity



1


USB 2.0 ports quantity



4


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


USB connector type



USB Type-A


VGA (D-Sub) ports quantity



1


Storage controllers



RAID levels



0, 1, 5, 10


Supported storage drive interfaces



SATA III


Supported storage drive types



HDD & SSD


Vendor information



Brand Name


Asrock


Warranty



1 Year(s)
