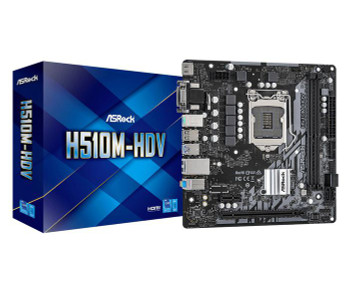

Asrock 90-MXBGS0-A0UAYZ H510M-Hdv R2.0 Intel H510 Lga 90-MXBGS0-A0UAYZ

PREMIUM 50A POWER CHOKE
ASRock�s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Clever Access Memory
Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With Clever Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.

Base Frequency Boost (BFB) Technology
Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Base Frequency Boost) Technology, users may install their non K series CPUs to ASRock�s selected 500 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately.

While ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig.
** BFB frequency performance results may vary between different CPUs and hardware configurations. Frequency shown in this chart is for reference only.

HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.

Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard�s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

BIOS



ACPI version



6.0


BIOS memory size



128 Mbit


BIOS type



EFI AMI


System Management BIOS (SMBIOS) version



2.7


Expansion slots



PCI Express x1 (Gen 3.x) slots



1


PCI Express x16 (Gen 4.x) slots



1


Features



Audio output channels



7.1 channels


Component for



PC


Motherboard chipset



Intel H510


Motherboard chipset family



Intel


Motherboard form factor



micro ATX


PC health monitoring



Fan, Temperature, Voltage


Graphics



HDCP



Yes


Parallel processing technology support



Not supported


Internal I/O



ATX Power connector (24-pin)



Yes


CPU fan connector



Yes


EPS power connector (8-pin)



Yes


Front panel audio connector



Yes


Number of SATA III connectors



4


TPM connector



Yes


USB 2.0 connectors



1


USB 3.2 Gen 1 (3.1 Gen 1) connectors



1


Logistics data



Harmonized System (HS) code



84733020


Memory



Maximum internal memory



64 GB


Memory channels



Dual-channel


Memory slots type



DIMM


Non-ECC



Yes


Number of memory slots



2


Supported memory clock speeds



2133, 2400, 2666, 2800, 2933, 3200


Supported memory types



DDR4-SDRAM


Network



Ethernet interface type



Gigabit Ethernet


Ethernet LAN



Yes


LAN controller



Realtek RTL8111H


Wake-on-LAN ready



Yes


Wi-Fi



No


Package dimensions



Gross Weight (Package, kg)



0.83 kg


Packaging content



Cables included



SATA


Processor



Compatible processor series



Intel� Core� i3, Intel� Core� i5, Intel� Core� i7


Processor manufacturer



Intel


Processor socket



LGA 1200 (Socket H5)


Product dimensions



Net Weight (Product, kg)



0.64 kg


Product Depth



18.8 cm


Product Width



19.7 cm


Rear panel I/O ports



DVI-D ports quantity



1


Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



1


Microphone in



Yes


PS/2 ports quantity



2


USB 2.0 ports quantity



4


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


VGA (D-Sub) ports quantity



1


Storage controllers



Supported storage drive interfaces



SATA III


Vendor information



Brand Name


Asrock


Warranty



1 Year(s)
