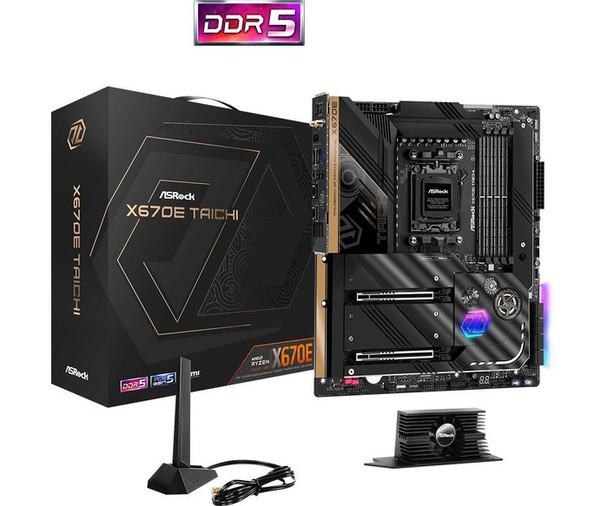

Asrock 90-MXBJ00-A0UAYZ X670E Taichi Amd X670 Socket 90-MXBJ00-A0UAYZ

Taichi represents the philosophical state of undifferentiated absolute and infinite potential. A motherboard that fulfills every task � with style! Become like water. Shapeless, formless, versatile for any situation.

Composite VRM Heatsink
It is equipped with a composite VRM heatsink combining a cooling fan, bigger aluminum sink and heat pipe for maximum heat dissipation.

PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

Lightning Gaming Ports
Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!

POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Wi-Fi 6E 802.11ax
WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

Front USB 3.2 Gen2x2 Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

BIOS



BIOS memory size



256 Mbit


BIOS type



UEFI AMI


Expansion slots



Number of M.2 (M) slots



1


PCI Express x16 (Gen 5.x) slots



2


Features



Audio chip



Realtek ALC4082


Audio output channels



5.1 channels


Component for



PC


Motherboard chipset



AMD X670


Motherboard chipset family



AMD


Motherboard form factor



Extended ATX


Windows operating systems supported



Windows 10 x64, Windows 11 x64


Internal I/O



ATX Power connector (24-pin)



Yes


CPU fan connector



Yes


Front panel audio connector



Yes


Number of SATA III connectors



4


RGB LED pin header



Yes


USB 2.0 connectors



2


USB 3.2 Gen 1 (3.1 Gen 1) connectors



2


USB 3.2 Gen 2 (3.1 Gen 2) connectors



1


Memory



Maximum internal memory



128 GB


Memory channels



Dual-channel


Memory slots type



DIMM


Non-ECC



Yes


Number of memory slots



4


Supported memory types



DDR5-SDRAM


Unbuffered memory



Yes


Network



Bluetooth



Yes


Ethernet interface type



2.5 Gigabit Ethernet


Ethernet LAN



Yes


LAN controller



Killer E3100G


Top Wi-Fi standard



Wi-Fi 6E (802.11ax)


Wi-Fi



Yes


Wi-Fi standards



802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Processor



Compatible processor series



AMD Ryzen 5 5th Gen, AMD Ryzen 7 5th Gen, AMD Ryzen 9 5th Gen


Maximum number of SMP processors



1


Processor manufacturer



AMD


Processor socket



Socket AM5


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



26.7 cm


Product Width



30.5 cm


Rear panel I/O ports



Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



1


Microphone in



Yes


S/PDIF out port



Yes


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



3


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity



5


USB 3.2 Gen 2x2 Type-C ports quantity



2


Storage controllers



Supported storage drive interfaces



M.2, SATA III


Vendor information



Brand Name


Asrock


Warranty



1 Year(s)
