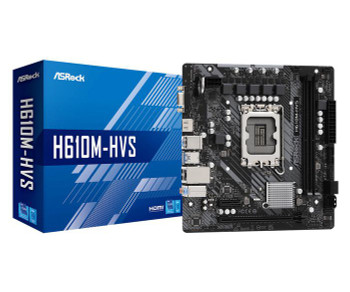

Asrock 90-MXBJJ0-A0UAYZ H610M-Hvs/M.2 R2.0 Intel H610 90-MXBJJ0-A0UAYZ

Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.

Premium Power Choke
Compared to traditional chokes, ASRock�s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard�s components from being damaged by these unexpected voltage spikes.

BIOS



BIOS memory size



128 Mbit


BIOS type



UEFI AMI


System Management BIOS (SMBIOS) version



2.7


Expansion slots



Number of M.2 (M) slots



1


PCI Express x1 (Gen 3.x) slots



1


PCI Express x16 (Gen 4.x) slots



1


Features



Audio chip



Realtek ALC897


Audio output channels



7.1 channels


Certification



- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)


Component for



PC


Motherboard chipset



Intel H610


Motherboard chipset family



Intel


Motherboard form factor



micro ATX


PC health monitoring



CPU, Fan, Voltage, Water cooling


Windows operating systems supported



Windows 10 Education x64, Windows 11 x64


Graphics



HDCP



Yes


Maximum resolution



4096 x 2160 Pixels


Parallel processing technology support



Not supported


Internal I/O



ATX Power connector (24-pin)



Yes


Chassis intrusion connector



Yes


CPU fan connector



Yes


EPS power connector (8-pin)



Yes


Front panel connector



Yes


TPM connector



Yes


USB 2.0 connectors



2


USB 3.2 Gen 1 (3.1 Gen 1) connectors



2


Memory



Maximum internal memory



64 GB


Memory channels



Dual-channel


Memory slots type



DIMM


Non-ECC



Yes


Number of memory slots



2


Supported memory clock speeds



3200


Supported memory types



DDR4-SDRAM


Unbuffered memory



Yes


Network



Ethernet interface type



Gigabit Ethernet


Ethernet LAN



Yes


LAN controller



Realtek RTL8111H


Wake-on-LAN ready



Yes


Wi-Fi



No


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Packaging content



Cables included



SATA


Processor



Compatible processor series



Intel� Core� i3, Intel� Core� i5, Intel� Core� i7


Maximum number of SMP processors



1


Processor manufacturer



Intel


Processor socket



LGA 1700


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



18.8 cm


Product Width



22.3 cm


Rear panel I/O ports



Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



1


Headphone outputs



1


Line-in



Yes


Microphone in



Yes


PS/2 ports quantity



1


USB 2.0 ports quantity



4


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


VGA (D-Sub) ports quantity



1


Storage controllers



Supported storage drive interfaces



M.2, SATA III


Supported storage drive types



HDD & SSD


Vendor information



Brand Name


Asrock


Warranty



1 Year(s)
