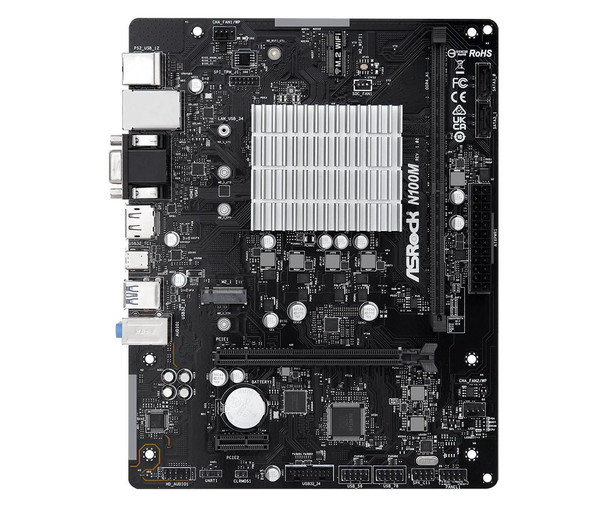

Asrock 90-MXBK80-A0UAYZ N100M Na Integrated Cpu 90-MXBK80-A0UAYZ

Intel� Alder Lake-N N100 Processor
The newest Intel� N100 processor, built on the Gracemont CPU microarchitecture using the Intel� 7 process, features 4 E-cores with a turbo frequency of 3.4GHz and Intel� UHD Graphics with 24 EUs. It is suitable for affordable, entry-level computing.

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.

Fanless Design
The CPU is covered by a specially designed heatsink which allows advanced heat dissipation. Utilizing an ultra quiet fanless design, this ASRock motherboard provides the most silent computing environment.

AV1 Decoding + 4K
Supports 10-bit HEVC & VP9 encoding/decoding, hardware-accelerated AV1 decoding, and a max. resolution of up to 4K x 2K 60Hz.

USB 3.2 Gen1 Type-C
USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.

Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!

BIOS



BIOS memory size



128 Mbit


BIOS type



UEFI AMI


Expansion slots



Number of M.2 (M) slots



1


PCI Express x1 (Gen 3.x) slots



1


PCI Express x16 (Gen 3.x) slots



1


Features



Audio chip



Realtek ALC897


Audio output channels



7.1 channels


Certification



- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)


Component for



PC


Motherboard chipset family



Intel


Motherboard form factor



micro ATX


Windows operating systems supported



Windows 10 x64, Windows 11 x64


Graphics



Graphics card



Intel� UHD Graphics


Graphics card family



Intel


HDCP



Yes


Maximum resolution



4096 x 2160 Pixels


Number of displays supported



3


Internal I/O



ATX Power connector (24-pin)



Yes


Chassis intrusion connector



Yes


Front panel audio connector



Yes


Number of chassis fan connectors



2


Number of SATA III connectors



2


TPM connector



Yes


USB 2.0 connectors



2


USB 3.2 Gen 1 (3.1 Gen 1) connectors



1


Memory



Maximum internal memory



32 GB


Memory slots type



DIMM


Non-ECC



Yes


Number of memory slots



1


Supported memory clock speed (max)



3200 MHz


Supported memory types



DDR4-SDRAM


Unbuffered memory



Yes


Network



Ethernet interface type



Gigabit Ethernet


Ethernet LAN



Yes


LAN controller



Realtek 8111H


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Packaging content



Bundled software



- ASRock Motherboard Utility (A-Tuning) - ASRock XFast LAN


Cables included



SATA


Drivers included



Yes


Processor



Compatible processor series



Intel Processor N


Processor cores



4


Processor manufacturer



Intel


Processor model



N100


Processor socket



NA (integrated CPU)


Supported processor sockets



BGA 1264


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



17.8 cm


Product Width



22.6 cm


Rear panel I/O ports



DisplayPort version



1.4


DisplayPorts quantity



1


Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



1


HDMI version



2.1


Headphone outputs



1


Line-in



Yes


Microphone in



Yes


PS/2 ports quantity



1


USB 2.0 ports quantity



4


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity



1


VGA (D-Sub) ports quantity



1


Storage controllers



Number of HDDs supported



2


Number of storage drives supported



3


Supported storage drive interfaces



M.2, SATA III


Supported storage drive types



HDD & SSD


Technical details



Sustainability certificates



Federal Communications Commission (FCC)


Vendor information



Brand Name


Asrock


Warranty



1 Year(s)
