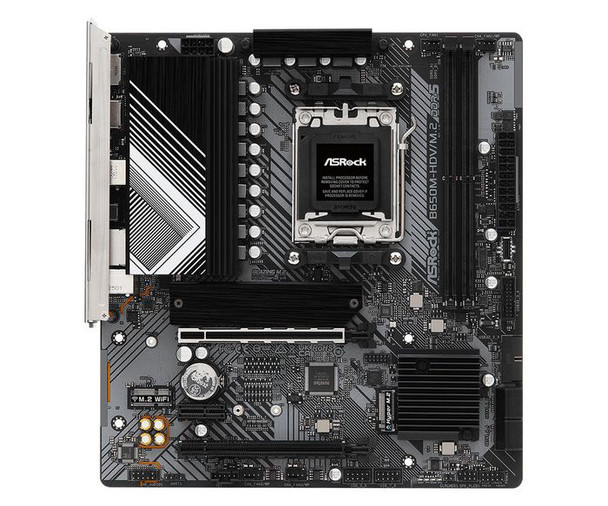

Asrock 90-MXBLA0-A0UAYZ B650M-Hdv/M.2 Amd B650 Socket 90-MXBLA0-A0UAYZ

Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

8+2+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

DDR5 Memory with Protection Circuit
Due to the unique electrical architecture of DDR5 DIMM, there�s a high risk of damaging the memory module if AC power isn�t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.

Reinforced Steel Slot
[PCIe 4.0 Version]
The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:? Extra anchor points
? Stronger latch
? Ensure signal stability
? Make sure heavy graphics cards to be well-installed.

Audio That Matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Enhance Communication Quality
The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
?Static Noise Suppression
?Echo Cancellation
?Lateral Sound Cancellation
?Voice Stabilizer

Ultimate Gaming Experience
?Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360� on a radar for a full immersion during the game.

?Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you�ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Front USB 3.2 Gen2 Type-C
Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

BIOS



BIOS memory size



256 Mbit


BIOS type



EFI AMI


Expansion slots



Number of M.2 (M) slots



1


PCI Express x1 (Gen 4.x) slots



1


PCI Express x16 (Gen 4.x) slots



1


Features



Audio chip



Realtek ALC897


Audio output channels



7.1 channels


Component for



PC


Motherboard chipset



AMD B650


Motherboard chipset family



AMD


Motherboard form factor



micro ATX


Windows operating systems supported



Windows 10 x64, Windows 11 x64


Internal I/O



ATX Power connector (24-pin)



Yes


CPU fan connector



Yes


EPS power connector (8-pin)



Yes


Front panel audio connector



Yes


Number of SATA III connectors



4


Thunderbolt headers



1


TPM connector



Yes


USB 2.0 connectors



2


USB 3.2 Gen 1 (3.1 Gen 1) connectors



2


USB 3.2 Gen 2 (3.1 Gen 2) connectors



1


Memory



Maximum internal memory



64 GB


Memory slots type



DIMM


Non-ECC



Yes


Number of memory slots



2


Supported memory types



DDR5-SDRAM


Unbuffered memory



Yes


Network



Ethernet interface type



2.5 Gigabit Ethernet


Ethernet LAN



Yes


LAN controller



Realtek RTL8125-BG


Wi-Fi



No


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Processor



Compatible processor series



AMD Ryzen� 7


Processor manufacturer



AMD


Processor socket



Socket AM5


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



22.6 cm


Product Width



24.4 cm


Rear panel I/O ports



DisplayPort version



1.4


DisplayPorts quantity



1


Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



1


Line-in



Yes


Microphone in



Yes


USB 2.0 ports quantity



4


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity



1


Storage controllers



RAID levels



0, 1, 10


RAID support



Yes


Supported storage drive interfaces



M.2, SATA III


Supported storage drive types



HDD & SSD


Vendor information



Brand Name


Asrock


Warranty



1 Year(s)
