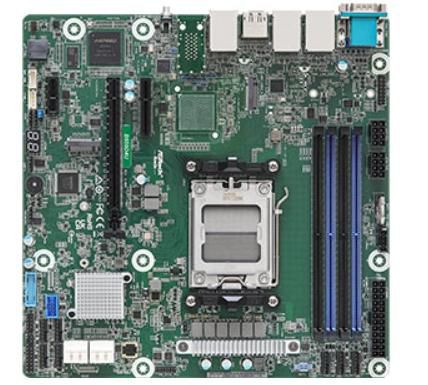

Asrock B650D4U Motherboard Amd B650 Express B650D4U

BIOS



ACPI version



6.4


BIOS memory size



256 Mbit


BIOS type



UEFI AMI


System Management BIOS (SMBIOS) version



3.5


Expansion slots



PCI Express x4 (Gen 4.x) slots



1


Features



Component for



Server


Motherboard chipset



AMD B650 Express


Motherboard chipset family



AMD


Motherboard form factor



micro ATX


PC health monitoring



CPU, Fan, Voltage


Graphics



On-board graphics card model



Aspeed AST2600


Internal I/O



ATX Power connector (24-pin)



Yes


EPS power connector (8-pin)



Yes


Number of COM connectors



1


Number of SATA III connectors



4


TPM connector



Yes


Memory



ECC



Yes


Maximum internal memory



32 GB


Memory slots type



DIMM


Memory voltage



1.1


Non-ECC



Yes


Number of memory slots



4


Supported memory clock speed (max)



5200 MHz


Supported memory clock speeds



3600, 5200


Supported memory types



DDR5-SDRAM


Network



Ethernet LAN



Yes


Wi-Fi



No


Operational conditions



Operating relative humidity (H-H)



20 - 90 %


Operating temperature (T-T)



10 - 35 �C


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Processor



Compatible processor series



AMD Ryzen� 3, AMD Ryzen� 5


Maximum number of SMP processors



1


Processor manufacturer



AMD


Processor socket



Socket AM5


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



24.38 cm


Product Width



24.38 cm


Rear panel I/O ports



Ethernet LAN (RJ-45) ports



2


HDMI ports quantity



1


IPMI LAN (RJ-45) port



Yes


Serial ports quantity



1


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



4


VGA (D-Sub) ports quantity



1


Storage controllers



RAID levels



0, 1, 10


RAID support



Yes


Supported storage drive interfaces



M.2, SATA III


Vendor information



Brand Name


Asrock


Warranty



1 Year(s)
