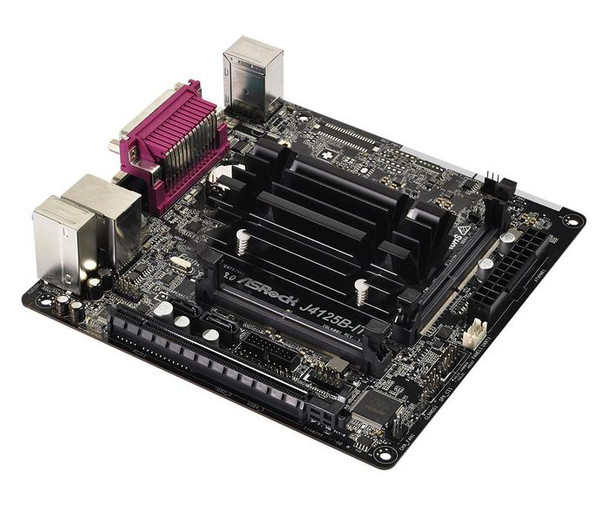

Asrock J4125-ITX J4125B-Itx Motherboard Mini J4125-ITX

D-Sub, HDMI, Parallel, COM
Packed with a COM port + Printer port + D-Sub + HDMI combo. Plus the HDMI port supports Full HD 1080p Blu-ray (BD) playback.

HEVC 10-bit Decoding/Encoding
Supports HEVC 10-bit Decoding/Encoding to provide substantially improved video quality and higher bit depth video experience.

Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Intel� Celeron� Processor J4125 (Up to 2.70 GHz)
Supports DDR4 SO-DIMMs
Supports the latest DDR4 SO-DIMM memory modules and most extreme memory performance!

ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard�s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

BIOS



ACPI version



5.0


BIOS memory size



128 Mbit


BIOS type



UEFI AMI


System Management BIOS (SMBIOS) version



3.0


Expansion slots



PCI Express x16 (Gen 2.x) slots



1


Features



Audio chip



Realtek ALC887


Audio output channels



7.1 channels


Certification



FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)


Component for



PC


Motherboard chipset family



Intel


Motherboard form factor



mini ITX


PC health monitoring



Fan, Temperature, Voltage


Windows operating systems supported



Windows 10 x64


Graphics



DirectX version



12.0


HDCP



Yes


Maximum resolution



4096 x 2160 Pixels


OpenGL version



4.4


Parallel processing technology support



Not supported


Internal I/O



ATX Power connector (24-pin)



Yes


Chassis intrusion connector



Yes


CPU fan connector



Yes


Front panel audio connector



Yes


Number of chassis fan connectors



1


Number of COM connectors



1


Number of SATA III connectors



2


USB 2.0 connectors



2


USB 3.2 Gen 1 (3.1 Gen 1) connectors



1


Logistics data



Harmonized System (HS) code



84733020


Memory



Maximum internal memory



8 GB


Memory channels



Dual-channel


Memory slots type



DIMM


Non-ECC



Yes


Number of memory slots



2


Supported memory clock speeds



2133, 2400


Supported memory types



DDR4-SDRAM


Unbuffered memory



Yes


Network



Ethernet interface type



Gigabit Ethernet


Ethernet LAN



Yes


LAN controller



Realtek RTL8111H


Wake-on-LAN ready



Yes


Wi-Fi



No


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Packaging content



Cables included



SATA


Drivers included



Yes


Processor



Compatible processor series



Intel� Celeron�


Maximum number of SMP processors



1


Processor cores



4


Processor manufacturer



Intel


Processor model



J4125


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



17 cm


Product Width



17 cm


Rear panel I/O ports



Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



1


Parallel ports quantity



1


PS/2 ports quantity



1


Serial ports quantity



1


USB 2.0 ports quantity



1


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



3


VGA (D-Sub) ports quantity



1


Storage controllers



Supported storage drive interfaces



SATA III


Supported storage drive types



HDD & SSD


Vendor information



Brand Name


Asrock


Warranty



1 Year(s)
