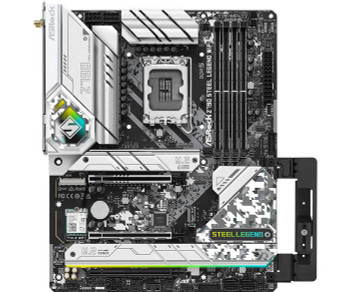

Asrock Z790 Steel Legend Wifi Intel Z790 1700 Atx 4 Ddr5 Hdmi Dp Edp Wi-Fi 6E 2. Z790 STEELLEGENDWIFI

Z790 Steel Legend WiFi


Supports 13th Gen & 12th Gen Intel® Core™ Processors
16+1+1 Phase Power Design, SPS for VCore+GT
4 x DDR5 DIMMs, supports up to 6800+(OC)
1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key-E for WiFi
Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP
7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
1 Blazing M.2 (PCIe Gen5x4), 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3
1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 12 USB 3.2 Gen1 (8 Rear, 4 Front), 3 USB 2.0 (3 Front)
Realtek 2.5G LAN
802.11ax Wi-Fi 6E + Bluetooth

DescriptionSpecification

Motherboard Type: Desktop
Form Factor: ATX
Socket: Intel 1700
Chipset: Intel Z790
#Hide#DDR Type: DDR5
CPU Support: Click here for CPU support
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x DIMM
RAM Speeds: Up to 6800+(OC)
Maximum Memory: 128GB
Graphics: Integrated Graphics*

*Graphics specifications may vary between CPU types
Graphics Ports: 1 x HDMI
1 x DisplayPort
1 x eDP 1.4
Multi-GPU Support: Supports AMD CrossFire
PCI/PCI Express: 1 x PCIe 5.0 x16 (supports x16 mode)
1 x PCIe 4.0 x16 (supports x4 mode)
1 x PCIe 3.0 x16
Storage: 8 x SATA III
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2260/2280) - PCIe
RAID: "Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices"
Wireless: 802.11ax Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax
Supports Dual-Band 2x2 with ext 6GHz band support
2 antennas - 2 (Transmit) x 2 (Receive) diversity tech
Supports Bluetooth + High speed class II
Supports MU-MIMO
LAN: 2.5GB LAN
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
USB Ports Supported: "1 x USB 3.2 Gen2 Type-C (at back)
1 x USB 3.2 Gen2 Type-A (at back) x USB 3.2 Gen1 (8 at back, 4 at mid-board)
3 x USB 2.0 (at mid-board)
1 x Front Panel Type-C USB 3.2 Gen2x2 Header"
Back Panel I/O Ports: 2 x Antenna
1 x HDMI Port
1 x DisplayPort 1.4
1 x Optical SPDIF Out
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
8 x USB 3.2 Gen1
1 x RJ-45 LAN
HD Audio Jacks
Internal I/O Connectors: 1 x eDP Signal
1 x SPI TPM
1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
5 x Chassis/Water Pump Fan
1 x 24 pin ATX
2 x 8 pin 12V
1 x Front Panel Audio
1 x Thunderbolt AIC
.: 2 x USB 2.0
2 x USB 3.2 Gen1
1 x Front Panel Type-C USB 3.2 Gen2x2
Accessories: 1 x User Manual
2 x SATA Data Cables
1 x ASRock WiFi 2.4/5/6 GHz Antenna
4 x Screws for M.2 Sockets
1 x Graphics Card Holder
Additional Features: See Overview
Package Type: Retail
Package Weight: 2.6440 kg
Warranty: 3 Year Replacement Warranty
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 1 x LAN
#Hide#Max LAN Speed: 2.5GB LAN
#Hide#Wi-Fi: Yes (Wi-Fi)
#Hide#RGB Lighting: Out of the box RGB lighting
